Overview

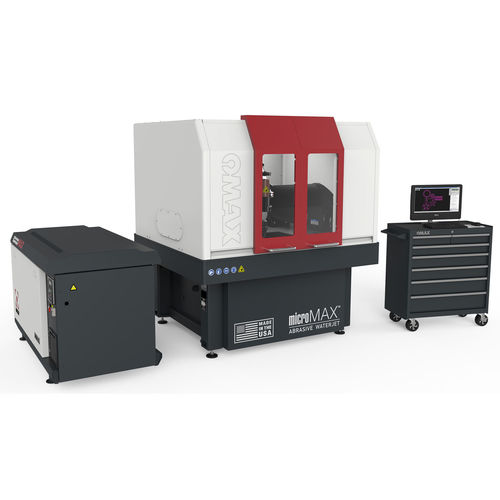

The MicroMAX is a precision abrasive waterjet machining center. System includes pump and software for complete cutting solutions.

• Cutting envelope: 2' 1" x 2' 1" (0.63 m x 0.63 m)
• Linear position accuracy: ±0.0001" (±2.5 micron)

Standard Features

• Stiff structural design to reduce vibration and improve accuracy
• Vibration isolation of table and gantries
• Components matched for thermal expansion
• Full enclosure with environmental controls for quiet, safe and clean operation below 80 dB
• Advanced pressure controls for piercing delicate materials
• Standard OMAX 7/15 Mini MAXJET 5 nozzle (0.007" orifice & 0.015" mixing tube) for finer cutting precision
• TiltaJet taper-eliminating abrasivejet cutting head
• Rapid Water Level Control for cleaner, safer and quieter submerged cutting (most work below 80 dBA)

OMAX Benefits

• No heat-affected zones or mechanical stresses
• Able to machine a wide range of materials and thicknesses: metals, composites, glass, plastics
• No tool changes and minimal fixturing reduce setup time

Service & Training

• Unlimited free training for the life of the machine
• Unlimited software upgrades for the life of the machine
• 2-year / 4000-hour limited warranty
• 3 days of onsite training upon installation

Pump Info
Motor Power: 30 HP (22 kW)
MAX Jet Power: 25.5 HP (18.7 kW)
Output Pressure: 60,000 psi
Orifice & Flow Rate (recommended max): 0.012" / 0.67 gpm (0.30 mm / 2.54 lpm)
Footprint (pump): 44" x 62" x 44" (1,118 mm x 1,575 mm x 1,118 mm)

Dimensions & Specs
Footprint (with pump & controller): 10' 2" x 7' 2" (3.10 m x 2.18 m)
Height (with whip plumbing): 7' 6" (2.29 m)
Operating Weight: 7,372 lb (3,344 kg)
Weight (tank empty): 3,700 lb (1,678 kg)
X-Y Cutting Travel*: 2' 1" x 2' 1" (0.63 m x 0.63 m)
Z-Axis Travel (with Motorized Z Axis)*: 4.5" (114 mm)
Table Size: 2' 11" x 3' 0" (0.89 m x 0.91 m)

Model Specs

• Material support slats: 4" x 1/8" galvanized steel
• Maximum supported material load: 400 lbs/sq ft (1,950 kg/sq meter)
• Electrical requirements: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
• Speed: 100 in/min (2,540 mm/min)
• Linear positional accuracy*: ±0.0001" (±2.5 micron)
• Repeatability*: ±0.0001" (±2.5 micron)
• Ballbar circularity*: ±0.0005" (±13 microns)

Accessories (examples)

• Z-Axis accessories: Laser Feature Finder, Precision Optical Locator, Vacuum Assist (for piercing brittle materials and advanced composites)
• Tank enhancements: Bulk Abrasive Delivery System (multiple sizes), Variable Speed Solid Removal System
• Water treatment equipment: Chiller System, Laminar Filter, Reverse Osmosis System, Water Recycling System
• Multi-axis options: Rotary Axis for 6-axis paths to produce complex 3D shapes

Notes
* Accessories may reduce travel. Accuracy specifications are at 72° F (22° C).

Technical specifications

• Model: MicroMAX
• Brand: OMAX
• Technology: Abrasive waterjet
• Cutting envelope / X-Y travel: 2' 1" x 2' 1" (0.63 m x 0.63 m)
• Z-axis travel (motorized): 4.5" (114 mm)
• Table size: 2' 11" x 3' 0" (0.89 m x 0.91 m)
• Operating weight: 7,372 lb (3,344 kg)
• Electrical: 3-Phase, 380-480 VAC ±10%, 50-60 Hz
• Pump example: EnduroMAX 30HP — output 60,000 psi, MAX Jet Power 25.5 HP (18.7 kW), recommended orifice 0.012" / 0.67 gpm
