vibration motor with electric actuator / for concrete / rotary
BMCC series

Add to MyDirectIndustry favorites
Compare this product
vibration motor with electric actuator / for concrete / rotary vibration motor with electric actuator / for concrete / rotary - BMCC series
{{requestButtons}}

Characteristics

  • Operation:

    with electric actuator

  • Product applications:

    for concrete

  • Type:

    rotary

  • Rotational speed:

    Max.: 5,500 rpm (34,557.5 rad.min-1)

    Min.: 3,100 rpm (19,477.9 rad.min-1)

Description

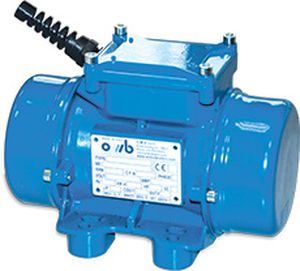

O.M.B.s direct current vibrator motors BMCC series have been studied for those installations where electric power network is not available. They are the ideal product to be used on trucks and self driven vehicles. The executions at 5500 rpm are particularly suitable for the vibration of ready-mixed concrete and for preparation in site of the concrete assays for laboratory tests. Direct current vibrator motors are realized with permanent magnets and wound rotor with collector and brushes.

Direct current feeding 12V and 24V
Executions at 3100 rpm and 5500 rpm
Feeding cable long 2,5 mt.
On request
End covers in INOX steel
Speed different from standard
