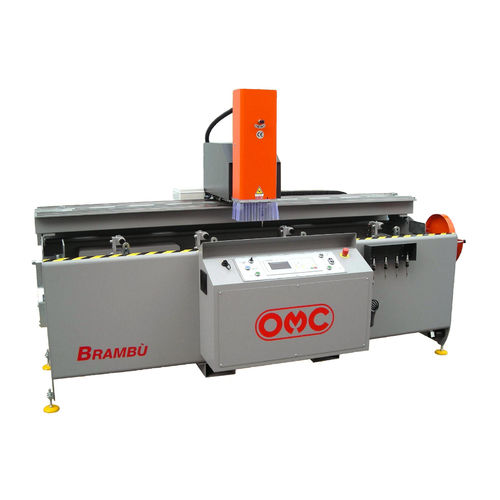

3-axis CNC milling center BRAMBÙ 2+1

for aluminumfor steelfor PVC

Milling center controlled by CNC, for processing aluminum profiles PVC and steel. 2 X and Y axes controlled for machining on pre-set parametrizable macros. Pneumatic rotation of the work surface from 0 ° – 90 ° – 180 ° and intermediate degrees. Lowered pneumatic head by joystick from the operater. Electro-spindle power 3 Hp with speed variator 0 -18.000 rpm. Easy machine programming, Processing needs the on-board operator machine. Thanks to the double line it is possible work profiles even longer than the useful field. Useful field of work: X 2500 mm Y 270 mm Z 220 mm Optional: possibility to mount a electrospindle with tool change quick, pneumatic manual Cone ISO 20.
