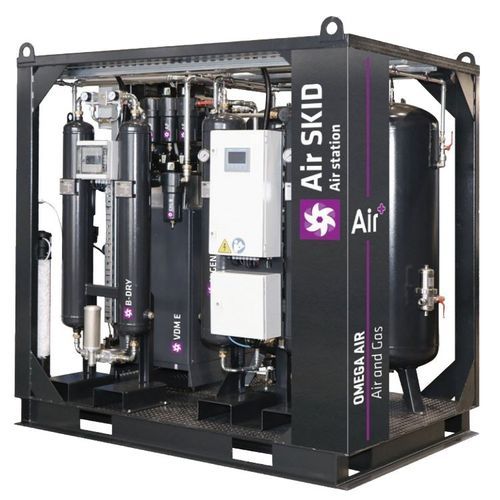

Security pressurization skid

with programmable logic controller (PLC)

Product overview
Skid-based compressed air and gas supply system designed to generate and deliver compressed air, nitrogen (N2) or oxygen (O2) according to project requirements. Compact, transport-optimised frame for safe handling and fast installation. Units are modular and configurable by capacity, gas type and required output quality; standard or custom component integration is available for industrial applications.

Characteristics

• Operating pressure: 0 to 420 bar
• Operating temperature range: on request
• Connections and interfaces: on request
• Flow capacity: on request

Example of N2 SKID unit - Components

• compressor
• electrical cabinet
• controller
• cyclone separators
• filters
• dryers
• condensate drains
• gas generators
• pressure vessel
• aftercooler

Design codes

• PED
• ASME
• DNV
• ABS
• NR13
• AS1210

Engineering and customization
Industrial engineering division can integrate standard or custom-made products into skid-based packages according to specific project requirements, producing compact, transport-optimised skids tailored to required capacity, gas type and output quality. Options include control and monitoring interfaces, safety devices and site-adaptation services.

Technical specifications

• Type: skid-based compressed air / gas supply system (air, N2, O2)
• Operating pressure: 0 to 420 bar
• Operating temperature range: on request
• Connections: on request
• Flow capacity: on request
• Main components: compressor, electrical cabinet, controller, cyclone separators, filters, dryers, condensate drains, gas generators, pressure vessel, aftercooler
• Configurations: available in various configurations based on capacity, gas type and output quality
• Design & compliance: can be designed according to PED, ASME, DNV, ABS, NR13, AS1210 and other codes
• Customization: standard or fully custom integration by industrial engineering team
