Ultra high-purity nitrogen generator N2 BOX

dryhigh-purityUHP

Product overview
N2 BOX units are designed for outdoor installation as self-contained, mobile nitrogen production stations. Systems are weather-protected and can be relocated to new sites as required.

General description
N2 BOX is a nitrogen generation solution combining compressed air preparation and a built-in nitrogen PSA generator to supply industrial nitrogen on demand.

Unit consists of

• compressor(s)
• compressed air filtration
• moisture separation
• compressed air drying
• water/oil separation
• activated carbon tower
• nitrogen PSA generator

Characteristics

• Operating pressure: 6 to 10 bar
• Operating temperature range: on request
• Connections: on request
• Flow capacity: on request

Nitrogen purity ranges
N2 BOX systems can deliver nitrogen across a range of purities to match application needs: typical food-processing purity is 99–99.5%; lower purity (≈96–99%) is used for fire and explosion prevention; high purity (99.9–99.999%) is available for laser cutting, electronics soldering and pharmaceutical use.

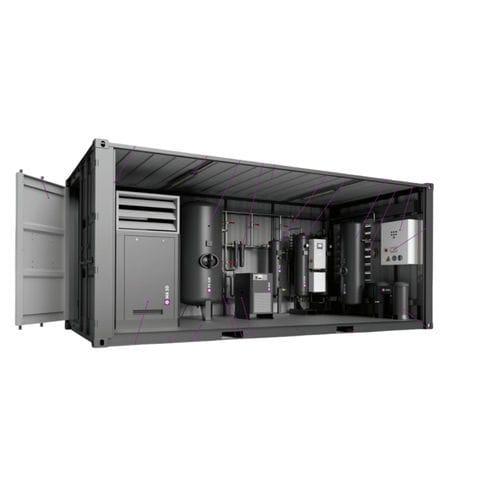

Example configuration
Containerized compressor room with integrated nitrogen generator. Containerized solutions are available in ISO sizes: 10 ft, 20 ft, 40 ft, 40 ft HC.

Optional equipment

• Accessories and custom equipment for BOX units (various configurations)
• Standard container model – single-side opening (ISO 10 ft, 20 ft, 40 ft, 40 ft HC)
• Optional container model – two-side opening (ISO 20 ft, 40 ft HC)

Engineering and compliance
Industrial engineering division can integrate standard or bespoke packages into container solutions per project requirements. Containerized compressor rooms can be designed to comply with multiple codes (PED, ASME, DNV, ABS, NR13, AS1210, etc.).

Required parameters for selection

• Flow range
• Pressure range
• Temperature range
• Minimum solids content
• Minimum moisture content
• Minimum oil content

Technical specifications

• Operating pressure: 6 to 10 bar
• Operating temperature range: on request
• Connections: on request
• Flow capacity: on request
• Nitrogen purity: available from ~96% up to 99.999% depending on configuration
• Container options: ISO containers (10 ft, 20 ft, 40 ft, 40 ft HC); single-side or two-side opening
