Overview

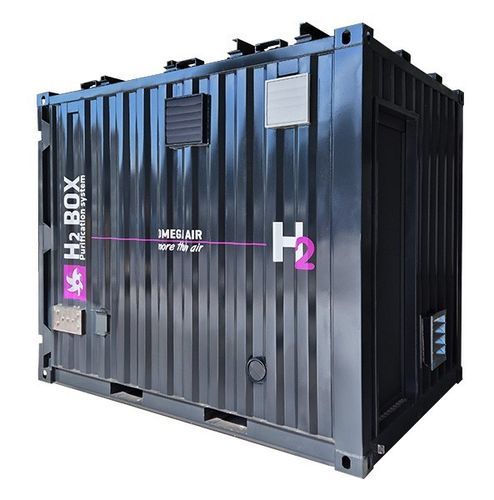

The H2 BOX is a compact, containerised hydrogen purification unit assembled and supplied by OMEGA AIR. The system is built for outdoor installation, transportable and delivered wired, tested and ready for connection. It is designed for continuous removal of water vapour, oxygen and solid particles from hydrogen streams and can be integrated with electrolyser systems and hydrogen refuelling infrastructures. The H2 BOX is compatible with fuel cell purity requirements (ISO 14687:2019) and is suitable for industrial applications where stable gas quality is required.

Drying and Regeneration
Drying is based on adsorption in two pressurised columns filled with adsorbent material. Regeneration runs in a closed-loop, heat-regenerated cycle to minimise hydrogen loss. The H2-DRY alternates three main phases: adsorption, heating (regeneration) and cooling. An optional deoxo module can lower oxygen levels to below 5 ppm. With appropriate external utilities for regeneration/cooling, purge or gas loss can be limited to 1–2% (depending on chosen configuration).

Technology
OMEGA AIR units use Temperature Swing Adsorption (TSA) technology, exploiting temperature-dependent adsorption properties of gases on solid adsorbents to achieve the required dew point and contaminant levels.

Technical specifications
Operating pressure: up to 45 bar
Inlet temperature: up to 80 °C
Ambient temperature: 1.5 to 50 °C (verify blower suction conditions)
Pressure dew point: -40 °C (lower PDP on request)
Voltage, Frequency: 400 V, 50 Hz
Protection class (controller): IP 65
Communication: Modbus TCP/IP, Profinet TCP/IP (other on request)
Filter requirement (inlet)*: Super fine coalescing
Filter requirement (outlet)*: Dust filter; 1 μm
Certification: CE/ATEX (IECEx on request)

DRYER TYPES:

• 1 = HEATED PURGE PULSE HPP (purge consumption up to 2%)
• 2 = HEATED PURGE HP (purge consumption up to 4%)
• 3 = ZERO LOSS REGENERATION X (without purge consumption = zero loss)

Applications

• Chemical industry | Production of ammonia and other fertilizers
• Petrochemical industry | Sulfur removal, hydrocracking, methanol production
• Food industry | Hydrogenation processes (e.g., margarine, fats)
• Welding | Atomic hydrogen or plasma welding processes
• Glass production | Shielding / reducing atmospheres when mixed with nitrogen
• Electronics manufacturing | Semiconductor, LED and display manufacture
• Aerospace | Use in propulsion and test systems (including liquid hydrogen handling contexts)
• Building services | Lighting and heating gas applications
• Hydrogen Refueling Stations (HRS) | Fuel Cell Electric Vehicles (FCEVs)

Characteristics / technical specifications

• Operating pressure: up to 45 bar
• Inlet temperature: up to 80 °C
• Ambient temperature: 1.5 to 50 °C (verify blower suction conditions)
• Pressure dew point: -40 °C (lower PDP on request)
• Voltage, Frequency: 400 V, 50 Hz
• Protection class (controller): IP 65
• Communication: Modbus TCP/IP, Profinet TCP/IP (other on request)
• Filter requirement (inlet): Super fine coalescing
• Filter requirement (outlet): Dust filter; 1 μm
• Certification: CE/ATEX (IECEx on request)
