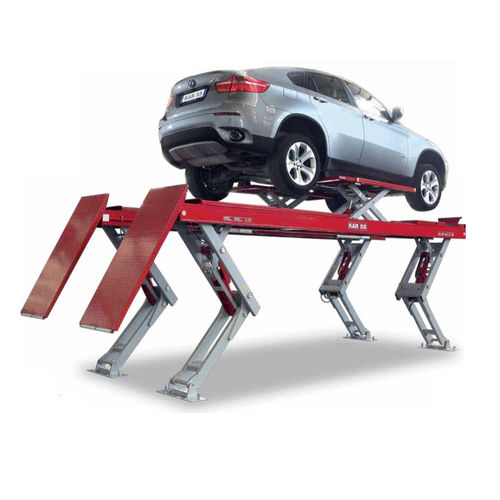

Scissors post lift Kar 55

electro-hydraulicfor carplatform

Electro-hydraulic lift, vertical lifting, for alignment purposes, meets all the requirements of the new long base vehicles, with capacity of 5.500 kg (12.100 Ibs) LT capacity 4.000 kg (8.800 Ibs) The lift is already according the updating of August 2010 of the european Norm EN 1493. Versions: N - Standard platform (not equipped) CA - Front recess on platform for turn plates and/or playdetectors CT - Total convergence version with front recess and rear slip plates LT - Auxiliary lift for wheel free working All lifts are available above ground and flush mount, one way and drive through versions Main features: Lift capacity: 5.500 kg LT capacity: 4.000 kg Platform lenght : 5.200 mm Platform widht : 650 mm Collapsed height : 240 mmin the N version - 290 mm in the CT/LT version Max Height: 2055 mm Modularity: It is possible to customize the platform lenght form 4.500 to 6.000 mm Accessories: Available "LTS" for the lenght of 5.600 mm with extensions for the lifting of the light commercial vans
