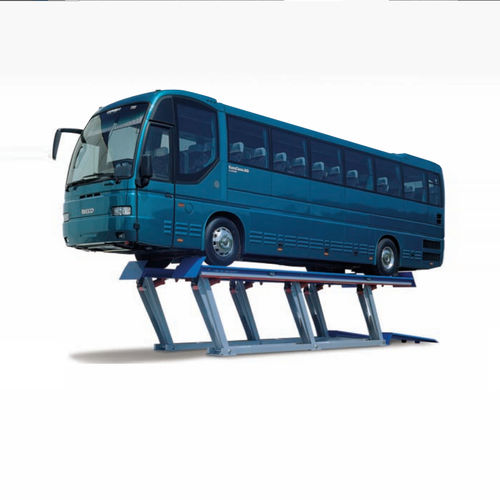

Parallelogram lift VEGA
electro-hydraulic380 Vfor trucks

parallelogram lift
parallelogram lift
Add to favorites
Compare this product


Characteristics

Type
parallelogram
Operation
electro-hydraulic
Voltage
380 V
Applications
for trucks, for buses
Lifting height

Max.: 1,850 mm (72.835 in)

Min.: 310 mm (12.205 in)

Description

The VEGA type lifts, at parallelogram lifting system, are electro-hydraulic and suitable to lift any type of heavy duty vehicles with an even load distribution on to the ground. Capacities: from 24 to 52 tons and more on specific request. All lifts are available in the Above Ground and Flush Mount versions. The lifts are already according the updating of August 2010 of the european norm EN 1493. Versions: Vega (standard) 240 -340 - 450 - 520 Description: Features: • Mechanical safety locks • No obstructions under the vehicle • Quick installation • No anchoring on the floor and easy relocation (for the standard versions) Accessories: • Pit cover plate (for the flush-mount versions of the standard and OF lifts) • Automatic pit cover plates (only for the flush-mount versions) • Low-voltage lighting system • 4-movement Play Detectors • Several types of jacking beams with lifting jacks of different capacities • Conversion kit from Flush mount version to Above ground and viceversa • Set of longer ramps for low-profile vehicles (only for Above Ground version) • Waterproof control panel cover • Safety bars

Catalogs

Vega
Vega
8 Pages
MCO 86
MCO 86
2 Pages
