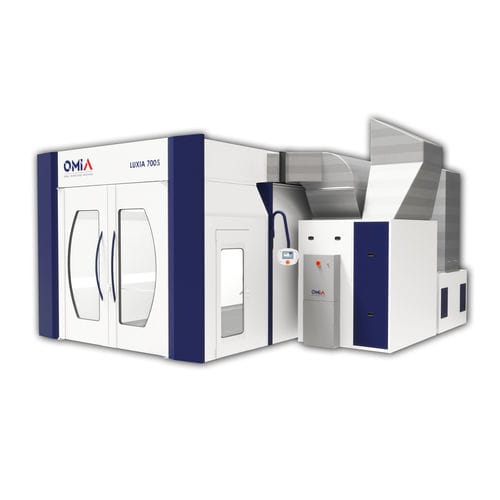

Enclosed paint booth LUXIA 700 S

for vehicleswith dryingwith vertical ventilation

Application : Paint booth for painting applications on light vehicles (L.V.) and utility vehicles (U.V) in automotive bodywork. Description : Combined booths : spraying/drying Vertical ventilation principle with balanced overpressure and heating. 10 MAJOR INNOVATIONS Integrated ENERGECO process Régul’press Air Touch Aerospeed Isolpax Isophonia Protect Planete Energia Report LED (OPTION) Hygro control (OPTIONAL) Pack eco (OPTION) STATE-OF-THE-ART TECHNOLOGY 3 filtration levels Function automation through a programmable logic controller IRC 85% high-resolution lighting - daylight tubes in IP54 sealed casing with electronic ballasts Configuration on civil works or metal base (with external full ramp / integrated mobile ramp depending on the formula) Heating via direct-fired gas burner in an air flow Floor with extraction system and galvanised gratings - Optimum floor surface area for extraction Numerous layout possibilities Wide range of different dimensions Advantages : - Design - Ergonomics and operator comfort - Productivity - Energy savings - Environmentally friendly Compliance : NF EN 16985 "Coating plants. Combined booths. Safety requirements" Machinery Directive 2006/42/EC depending on the equipment Directive on VOCs 2004/42/EC amending and replacing Directive 1999/13/EC of 11 March 1999 (reducing solvent emissions) applicable on 01 January 2007
