screw connection terminal block / DIN rail-mounted / DC / compact
C6320B-1

Add to MyDirectIndustry favorites
Compare this product
screw connection terminal block / DIN rail-mounted / DC / compact screw connection terminal block / DIN rail-mounted / DC / compact - C6320B-1
{{requestButtons}}

Characteristics

  • Connection:

    screw connection

  • Mounting:

    DIN rail-mounted

  • Other characteristics:

    DC, compact, standard, plastic

Description

16 terminal input/output pairs
+ve or �ve Common
compact size
DIN Rail (mounting)

Fastrak Field Terminal Board, 20 way ribbon to terminals - common +ve. Order Ribbon Cable C1432-X separately. DIN Rail mounting.

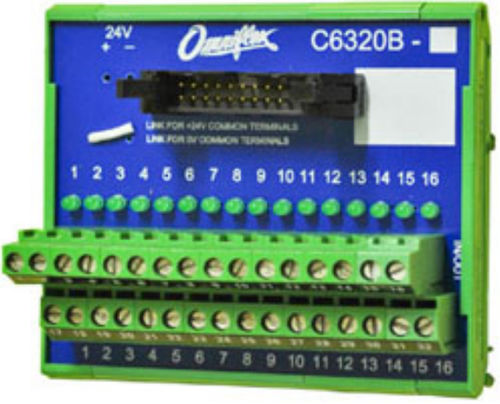

The C6320B-1 Ribbon to Terminal adapter board is a terminal board designed for termination field wiring from input contacts and converting them to standard Omniflex Ribbon input for maximum input density.

The circuits are not isolated and are typically used with potential free contact inputs and positive common. Terminals for the connection of DC power are provided .

The C6320B-1 terminal board is fitted onto a quick mount plastic rail for DIN-rail mounting in control panels
