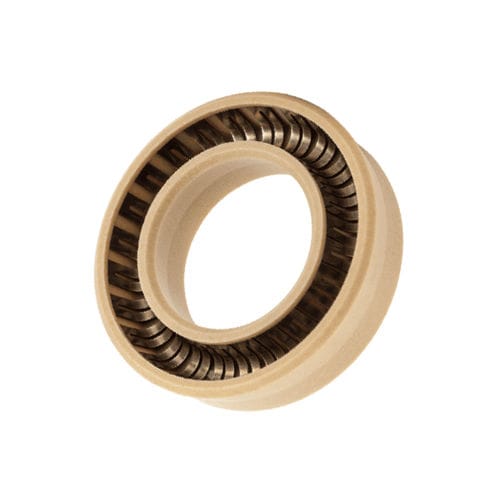

Spring-energized seal Omniseal® 400AsiliconeU-shapedflange
Add to favorites
Compare this product
Characteristics
- Type
- spring-energized
- Material
- silicone
- Configuration
- U-shaped
- Application
- flange, gearbox, control, shafts
- Other characteristics
- static, dynamic, custom-made, large, spring
- Temperature limit
Min.: -250 °C
(-418 °F)Max.: 350 °C
(662 °F)- Pressure limit
Min.: 0 Pa
(0 psi)Max.: 100,000,000 Pa
(14,503.8 psi)- Diameter
Min.: 15 mm
(0.591 in)Max.: 3,000 mm
(118.11 in)- Speed
1 m/s
(3.3 ft/s)
Description
This polymer seal has a cantilever spring design (also known as a V-Spring) and is used in dynamic applications, providing good friction and leakage control at moderate pressures and temperatures. The sealing solution features a PTFE jacket energized by a corrosion resistant, V-shaped spring (jacket designed with a flange on the ends).
