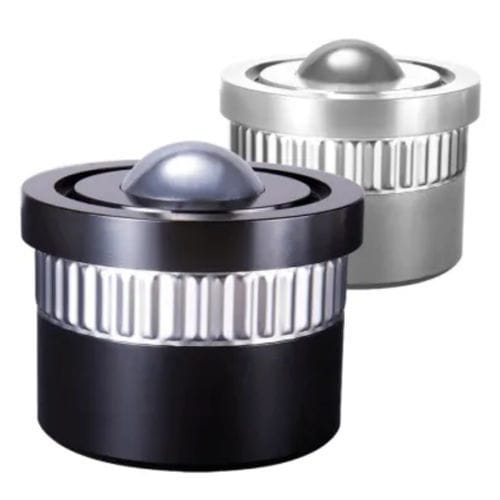

Heavy load ball transfer unit 8810

stainless steelcylindrical base

Omnitrack 98 series heavy duty ball units from our precision machined series & offer lowest coefficient of friction with the smoothest performance. Material upgrade options are shown below – order by adding the suffix to the part number required, for example, 9830 ‘SS’ for all stainless steel parts. Load ratings remain unchanged with standard, A, Z and SS material upgrades. The 98 series ball transfer with the tolerance ring has a load capacity from 46kg to 8000Kg each – Any angle of operation. 22, 45, 50, 60 & 100mm Ø integral tolerance press or push fit. Tolerance rings can be used to compensate for irregularities in bore. Integral dirt/debris channel (except 9810). Service kits available for extended service life. Load ratings remain unchanged with ‘Optional material upgrades’ (Stainless steel, A, Z).
