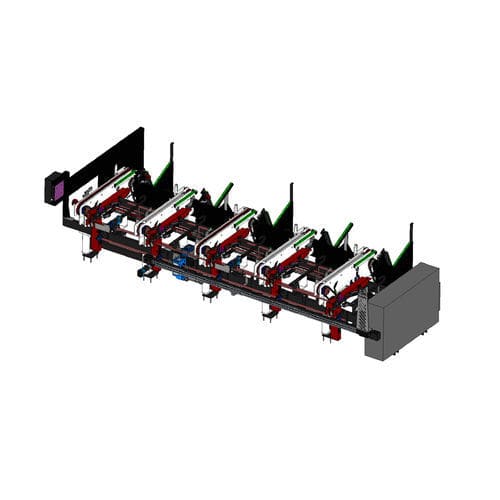

Semi-automatic loading system CMP - L

automatedfor warehouse

The CM-CP mixed loader provides the possibility of automatic loading for round, square and rectangle tubes positioned as a bundle on the basket of the CM model warehouse loader, designed to process large production batches of the same product. The CM-CP loader also allows the semi-automatic loading of different profiles, open profiles, beams and irregular box sections positioned directly on the CP model platform loader. It combines the characteristics of the two bar movement modules to have a highly versatile loader. To minimize time and optimize the entire workflow, the preload of the next bar occurs automatically during the cutting process of the previous bar. Robust and low maintenance machine. Handles pipes from Ø20mm to Ø220mm and inscribed. PRODUCT DETAILS: Loading tubes from bundle Round, square and rectangle tubes from 20 mm to 220 mm in diameter Semi-automatic tube loading Open profiles and special sections, from 20 mm to 220 mm, inscribed in this diameter Maximum loading length 9.300 mm Minimum loading length 2.500 mm
