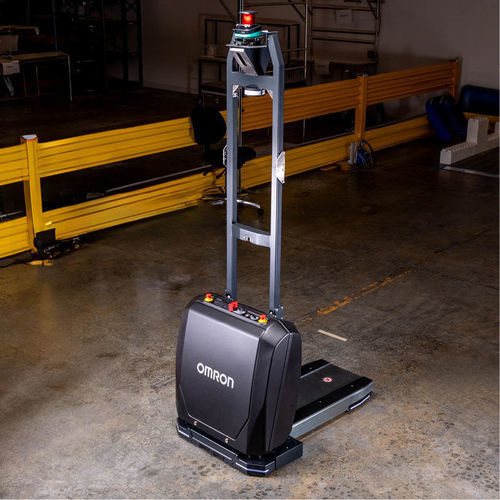

Lifting AMR OL-450S

transportfor palletfor trolleys

Overview
The OMRON OL-450S is an autonomous mobile robot (AMR) designed for industrial cart transport and lineside replenishment. Its low-profile, height-adjustable lift plate and omni-directional drive provide compatibility with roll cages, pick carts, pallets and trolleys while enabling high-speed, precise material flows. Integrates with OMRON FLOW Core for fleet management and predictive avoidance.

Key Features

• 450 kg payload capacity
• Omni-directional drive: front, back, lateral movement and rotation in place
• 360° LiDAR coverage for environment sensing
• ISO 3691-4 compliance (except clause 4.12)
• Height-adjustable lift deck (108–308 mm)
• Ready to operate out of the box; configurable run/charge profiles

Technology — Integrated low profile lifting plate
The OL-450S features a lift deck that lowers to 108 mm to slide under carts and raises to 308 mm to handle diverse load types. Integrated LiDAR enables cart recognition and fine positioning for reliable alignment.

• 450 kg maximum payload for common cart transport needs
• Fully integrated lift plate adjustable between 108 and 308 mm
• 108 mm lowered deck for compatibility without cart modification
• LiDAR-based recognition and precise positioning

Functional safety
Designed with a dynamic intelligent safety system to protect people and equipment during omni-directional operation.

• ISO 3691-4 compliance (except clause 4.12)
• 360° LiDAR scanning for full surroundings
• Safety coverage across all movement directions
• Avoids static and moving obstacles
• Dynamic braking and advanced safety logic
• Inter-vehicle data sharing for predictive obstacle avoidance

Wireless charging
Primary autonomous charging is via an integrated wireless charging system with fine positioning for pad alignment.

• Integrated wireless charging solution
• Fine positioning system for robust pad alignment
• Charge examples shown in documentation (e.g., 20%→80% charge durations)
• Run time examples vary with payload and operating mode

Omni-directional driving
Omni-directional drive enables lateral movement and rotation in place for efficient navigation in constrained production and logistics spaces.

• Tight maneuvering with full autonomous navigation
• Front, back and lateral movement plus rotation in place
• Navigation logic adjustable via software footprint switch
• Obstacle avoidance for static and moving objects

AMR Technology and Software
OMRON AMRs use dedicated navigation sensors and user-friendly software; the OL-series integrates with FLOW Core, MobilePlanner and supports dynamic obstacle tracking and alignment features.

• Dedicated navigation including laser scanners and sensors
• Intuitive software for operation and programming
• Seamless integration with FLOW Core for fleet and traffic management

Product variants (table)
Product | Mobile robot type | Maximum load | Maximum speed | Lifting plate length | Kit type | Battery included | Product height (unpacked) | Description
37590-70000 | Cart lifter | 450 kg | 1.2 m/s | 750 mm | Mobile robot only | No | 2235 mm | Mobile Robot, OL-450S2 with 1.6m Mast, without Battery
37590-70009 | Cart lifter | 450 kg | 1.2 m/s | 750 mm | Mobile robot only | No | 2235 mm | OL-450S S2 without mast
37590-80000 | Cart lifter | 450 kg | 1.2 m/s | 830 mm | Mobile robot only | No | 2236 mm | Mobile Robot, OL-450S3 with 1.6m Mast, without Battery
37590-80009 | Cart lifter | 450 kg | 1.2 m/s | 830 mm | Mobile robot only | No | 816 mm | OL-450S S3 without mast

Technical specifications

• Maximum payload: 450 kg
• Omni-directional drive: front, back, lateral movement and rotation in place
• Lift deck height: 108 mm (min) — 308 mm (max)
• Lift plate lengths: 750 mm and 830 mm (variants)
• Maximum speed: 1.2 m/s
• Safety: ISO 3691-4 (except clause 4.12); 360° LiDAR; dynamic braking; inter-vehicle data sharing
• Charging/runtime examples: documentation shows e.g., 20%→80% in ~40–45 min with runtimes varying by payload and mode — consult datasheet
• Wireless charging: integrated with fine positioning
• Compatibility: roll cages, pick carts, pallets and trolleys; integrates with FLOW Core (MobilePlanner, CAPS, dynamic obstacle tracking)
• Delivery/configuration: mobile robot kits; battery and mast variants per product codes
• Documentation: datasheets, brochures, application guides and user manuals available
