Cobot TM S series

6-axispalletizingtransfer

Product

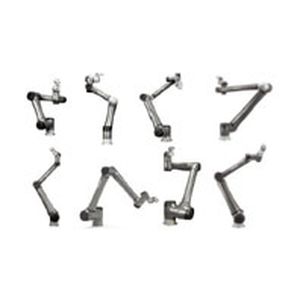

The OMRON TM S Series is a family of collaborative robots (cobots) designed for assembly, palletizing, inspection, logistics and other applications. The series includes multiple models with different reach and payload options, including DC power mobile robot compatible, EtherNet/IP, and PROFINET versions. The OMRON TM S Series is delivered with enhanced safety and certification compliance.

Overview
The OMRON TM Robot S Series provides a wide variety of models suitable for different applications. It offers 33 safety features, meets ISO 13849-1 (Cat.3, PL d) and ISO 10218-1 safety standards (TUV Nord certified), and includes UL/CSA certifications. With the PalletBoost 5 license, payload performance can be increased by 5 kg for select heavy-payload models.

Key Features

• Built-in industrial grade vision system for pattern recognition, object positioning and feature identification; immediate deployment without external camera or lighting integration.
• Advanced hand guidance: teach positions by moving the head and clicking a button; improved Robot Stick converts TM screen to teaching pendant; OMRON TM Pen included with S Series.
• Graphical programming via TMflow: flow-based software enabling drag-and-drop visual workflows with no complex coding.
• Script programming available (Project and Mode) for concise and organized robot projects.
• TMSimulator for offline development, testing and verification; includes a virtual robot stick and supports network and node communication testing, DI/AI signal control box I/O testing.
• Plug & Play compatibility with selected peripherals and software for rapid integration and deployment.

Operational and Programming Improvements
Project Stop and Error Stop Handling: users can create special subflow logic to define robot steps after project or error stop.
Tool Settings Improvements: Tool Settings option added on the project page for easier access.
Singularity Handling: slows the robot at singularity points to avoid joint speed errors and sudden stops (disables motion blending when enabled).
Redefined Payload Settings in Motion Nodes: new UI allows easier configuration for picking/releasing workpieces; external force/torque sensor support for automatic payload mass calculation and compensation.
Pattern-Matching UI: three algorithms available in TMvision Find tasks; object detection score represented as a single numerical value.

Safety
New safety functions support a wide variety of safety devices and switch configurations without requiring an additional safety controller.

• 33 safety features in total
• 14 newly added safety features

Certifications

• ISO 13849-1, Cat.3, PL d
• ISO 10218-1:2011
• UL & CSA Safety Certification

Protections

• IP65 rating for Robot Arm
• IP54 rating for AC control box, Robot Stick and TM screen
• ISO Class 3 for Cleanroom
• Enhanced oil-resistant covers for joints

Payload Enhancement (PalletBoost 5)
With the PalletBoost 5 license, payload performance increases by 5 kg for heavy-payload cobot models, enabling TM25S and TM30S to handle up to 30 kg and 35 kg respectively for specific movements.

Supported Models for TMSimulator (HW5.03)

• TM5S-X
• TM6S-X
• TM7S-X
• TM12S-X
• TM14S-X
• TM20S-X
• TM25S-X
• TM30S-X

Applications and Target Industries
Designed for a wide variety of industries and applications, including high-mix, low-volume production. Cobots are intended to work alongside humans without the need for physical cages and are suitable for tasks such as assembly, palletizing, inspection and logistics.

Ease of Use
Multiple programming methods available: built-in hand guidance, flow-chart programming (TMflow), and manual scripting. The Robot Stick and TM screen facilitate intuitive on-device operation and programming.

Caractéristiques / spécifications techniques

• Series name: TM S Series
• Manufacturer / Brand: OMRON
• Safety features: 33 total; 14 newly added
• Certifications: ISO 13849-1 (Cat.3, PL d), ISO 10218-1:2011, UL & CSA
• Protections: Robot Arm IP65; AC control box, Robot Stick and TM screen IP54; ISO Class 3 cleanroom rating; enhanced oil-resistant joint covers
• PalletBoost 5: increases payload capacity by 5 kg (examples: TM25S up to 30 kg for specific motions; TM30S up to 35 kg for specific motions)
• Built-in vision: industrial-grade pattern recognition, object positioning and feature identification (no external camera/lighting needed)
• Programming: hand guidance, TMflow (flow-based visual programming), script programming (Project and Mode)
• TMSimulator: offline program development, virtual robot stick controls, supports network and node communications, Modbus, Ethernet Slave, serial, DI/AI signal testing
• Compatible networks/protocols: EtherNet/IP and PROFINET versions available
