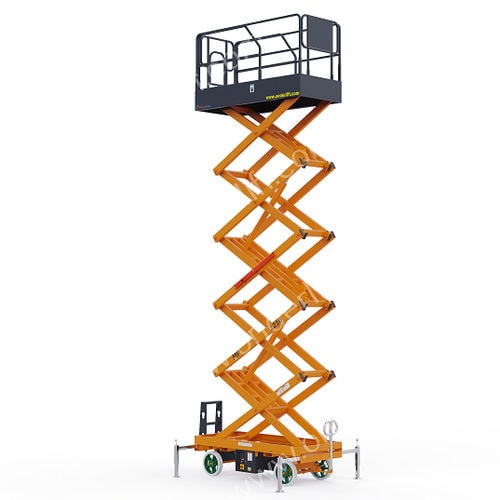

Mobile scissor lift MP.6608

electricindoor/outdoor

Product
Push-by-hand scissor lift — MP.6608

Category
Aerial work platform — Push-by-hand scissor lift

Dimensions
A - Working height: 6.6 m
B - Platform height (lifted): 4.6 m
D - Platform height (lowered): 1.1 m
D+C - Closed height (railings open): 2.2 m
Closed height (handrails folded): 1.65 m
C - Handrails height: 1.1 m
E x F - Platform dimensions: 1.75 x 0.80 m
K - Extension deck: 0.8 m
L - Total length: 2.15 m
J - Wheelbase: 1.2 m
Ground clearance (center): 0.80 m

Productivity
Lift capacity: 300 kg
Extension deck capacity: 100 kg
Maximum occupancy: 2 persons
Rise / lower time: 55 / 65 s
Weight: 915 kg
Wheels: 300 x 75 sn

Power
Power source: 380 V

Technical specifications

• Model: MP.6608
• Working height (A): 6.6 m
• Platform height - Lifted (B): 4.6 m
• Platform height - Lowered (D): 1.1 m
• Closed height - Railings open (D+C): 2.2 m
• Closed height (Handrails folded): 1.65 m
• Handrails height (C): 1.1 m
• Platform dimensions (E x F): 1.75 x 0.80 m
• Extension deck (K): 0.8 m
• Total length (L): 2.15 m
• Wheelbase (J): 1.2 m
• Ground clearance - Center: 0.80 m
• Lift capacity: 300 kg
• Extension deck capacity: 100 kg
• Maximum occupancy: 2 persons
• Rise / Lower time: 55 / 65 s
• Weight: 915 kg
• Wheels: 300 x 75 sn
• Power source: 380 V
