Box computer Karbon 802
GPUembeddedwall-mounted

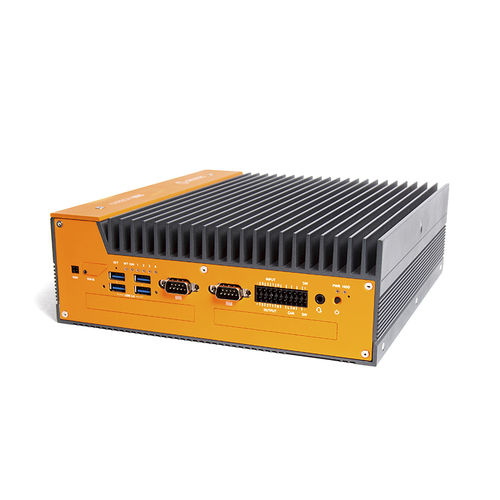

Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 2
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 3
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 4
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 5
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 6
Box computer - Karbon 802 - ONLOGIC - GPU / embedded / wall-mounted - image - 7
Add to favorites
Compare this product
Go to the ONLOGIC website for more information

Characteristics

Type
box, GPU
Configuration
embedded, wall-mounted, DIN rail
Processor
Intel® Core™ i7-12700TE, Intel® Core™ i9-12900TE, Intel® Core™ i7-12700E, Intel® Core™ i9-12900E, Intel® Core™ i3-12100E, Intel® Core™ i5-12500E, Intel® Core™ i5-12500TE, Intel® Core™ i3-12100TE
Ports
USB 3.2, HDMI, DisplayPort, DDR4 SO-DIMM, RS-232, Mini PCIe, USB 2.0, USB 3.0, RS-485, Ethernet, SATA, gigabit Ethernet, RS-422
Data storage
SSD 512GB, SSD 128GB, SSD 256GB, SSD 1TB, SSD 2TB
Operating system
Windows 10 IoT Enterprise, Windows 11 IoT Enterprise, Windows 11 Pro
Domain
industrial, railway, for harsh environments, for automation applications, professional, heavy-duty, for medical applications, for automotive applications, for marine applications, heavy-duty
Protection level
rugged, shockproof, heat/cold-resistant
Other characteristics
fanless, PoE

Description

The Karbon 802 rugged computer features 12th Gen Intel Core processing, dual ModBay expansion and optional hot swap storage. Intel 12th Gen processing up to 16-core Core i9 Up to 14x LAN or 14x USB 3.2 using ModBay I/O Expansion 2x 2.5" SSDs with optional hot-swap bays Hardware Line: Rugged Cooling Type: Fanless Processor: Intel Alder Lake Core i3/i5/i7/i9 Processor Socket: LGA1700 Processor Generation: Alder Lake Processor Cores: Up to 16 (processor dependent) Chipset: W680 Graphics/GPU: Intel® UHD Graphics 770 Memory Type: DDR4 SO-DIMM (non-ECC), DDR4 SO-DIMM (ECC) Memory Capacity: 64 GB Memory Speed: 3200 MHz Memory Slot Count: 2.000000 Number of Displays Supported: 2 native (4 with MST hub) Rear I/O: 2x or 6x 2.5 GbE LAN (2x PoE optional), 2x USB 3.2 Gen 2 ports, 2x DisplayPort, 5-Pin Terminal Block Power Input (12~48 VDC), 2x ModBay Expansion (optional) Front I/O: 4x USB 3.2 Gen 2 ports, 2x COM RS-232/422/485 ports, 1x GPIO Terminal block (DIO, CAN, Ext. Switch), 2x 3FF Micro-SIM, 1x 3.5mm audio, 1x Power button, 1x External fan connector, 2x 2.5” Hot-Swap Drives (optional) Expansion Options: 1x mPCIe (PCIe x1; USB 2.0), 1x M.2 2230 E-key (PCIe x1; USB 2.0), 1x M.2 2280 M-key (PCIe Gen 4 x4), 1x M.2 2280 M-key (PCIe Gen 4 x4; SATA), 1x M.2 3042/3052/2280 B-key (PCIe x2; USB 2.0; USB 3.0; SATA) Storage Options: 1x M.2 2280 (SATA), 1x M.2 2280 (PCIe Gen 4 x4; SATA), 2x SATA 2.5" Drives (optional hot-swap), 1x M.2 2280 (PCIe Gen 4 x4) RAID Support: 0/1 LAN Controller: Intel I225-IT GbE, Intel I225-LM GbE System Monitoring: AMT Support, PTT in BIOS, TPM (Optional), Watchdog Timer Input Voltage: 12~48 VDC
