Digital I/O card PA32IX

PXI32-I/Obox

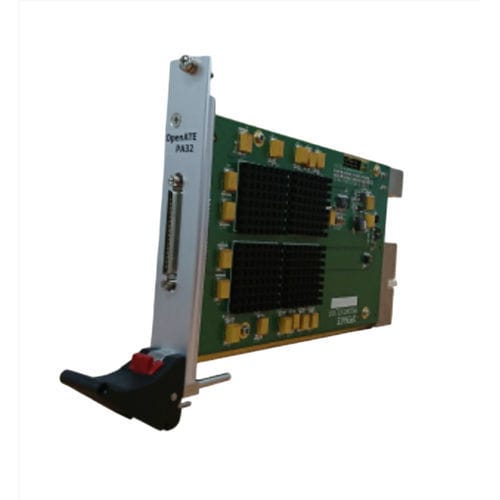

The PA32IX represents a new level of performance and capabilities for PXI-based digital instrumentation. Each card can function as a stand-alone digital subsystem or if required, multiple cards can be interconnected, supporting up to 512 bi-directional pins(16 boards). The PA32IX also supports deep pattern memory by offering 64 M of on-board vector memory with static per pin direction control and with test rates up to 50 MHz. With new 64M capture memory, PA32IX can capture 32 channels data log . Features The PA32IX supports -0.5 ~ +5 VTH per channel ,VIH/VIL per channel. The PA32IX offers 1, 2 driver TG Edges, 1 strobe TG Edges, and four drive data formats are supported: RTZ(Return To Zero), RTO (Return To One), NRZ (Non Return To Zero),SBC (Surround By Complement) which can providing flexibility to create a variety of bus cycles and waveforms to test board and box level products Compatibility All OpenATE Interfaces PXI cards comply with the PXI Specification 2.0 (issued Aug. 2000) Software The PA32IX is supplied with API and Pattern Editor. Pattern Editor is a software tool that edits test patterns. Application • Digital Pattern Capture • Digital Pattern Generation • Hybrid and Digital IC Testing
