Air purification system Flex

for pipetting robotUVby filtration

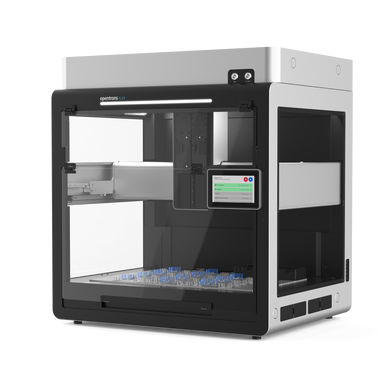

The Opentrons Flex HEPA/UV Module enables you to run sensitive contamination-prone applications. It removes 99.99% of 0.3 μm DNA-containing particulates and biological contaminants like bacteria, fungi, and other microorganisms from the air, creating a clean work environment inside the Opentrons Flex. Tech Specs Dimensions 87cm x 64cm x 14cm (l/w/h) Voltage 100 – 240 VAC Filter Lifetime 3 years of moderate use (~6,000 hours) Power Consumption 75.5 watts – 160 watts Weight 42 lbs. / 20kg Noise Level 70 decibels Power Supply (AC) Input: 2.2 A at 115 VAC, 1.1 A at 230 VAC Output: 24 VDC, 8.4 A, 201 W max Operating Space 20 cm / 8” (minimum) of side and top clearance Can the HEPA/UV Module be used for work with pathogens? The Opentrons Flex HEPA/UV Module is not a biosafety cabinet, nor does it protect the user. The module is used to maintain a sterile working environment inside the Flex. The HEPA/UV Module should never be used for pathogens. It should not be used for situations where there are volatiles, or any potentially hazardous aerosolized materials. Is the HEPA/UV Module a standalone unit? The Opentrons Flex HEPA/UV Module is intended for use with our Opentrons Flex Robot, and can not be used as a standalone unit.
