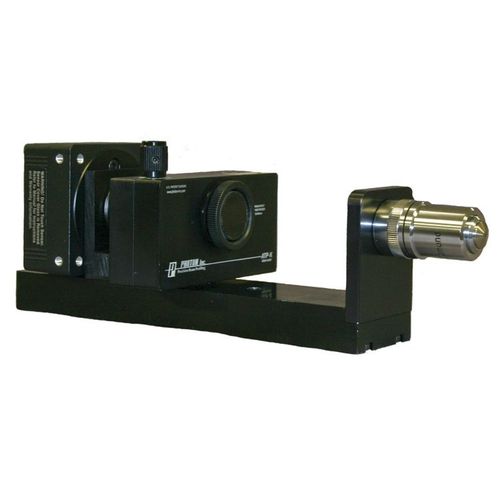

Camera laser beam profiler C-NFP Assy

near field

Camera-Based Attachment for Beam Profiling of Lasers in the Near Field Description: Near field profiling can also be used with camera profilers to analyze small beams, and involves a microscope objective lens to image the beam onto a camera detector array. This technique expands the measurement range of the camera to include smaller beams, which could not be ordinarily measured due to the pixel size of the detector array. Near field profiling is performed in fiber and waveguide analysis, lens characterization, and other applications where beams 50µm or smaller are analyzed. Specificarion Recommended Wavelengths: 190 - 1100nm Approximate Expansion Ratio: 10X, 20X, 40X, 60X Beam Size: 50µm and smaller
