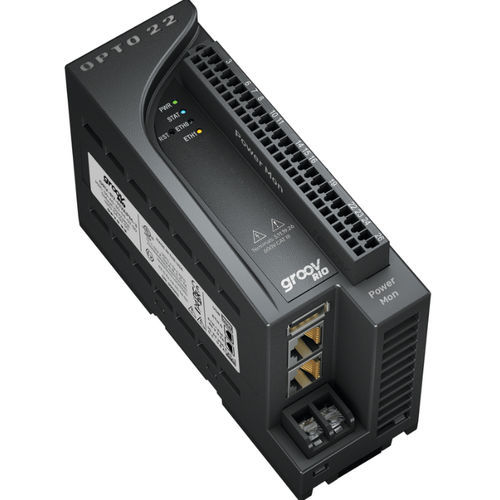

Power monitoring unit GRV-R7-I1VAPM-3

flowvoltagecurrent

The GRV-R7-I1VAPM-3 is a groov RIO energy monitoring unit (EMU) designed as an intelligent, distributed power and energy monitoring module. With built-in web-based configuration, commissioning, flow logic software, and the ability to run control programs written in IEC 61131-3 compliant languages, the groov RIO EMU also offers support for multiple OT and IT protocols. All these capabilities give the groov RIO EMU the flexibility to fit into IIoT projects (especially those that require energy data acquisition or communications) or traditional energy management control systems, or to act as a stand-alone energy management control unit.. Learn more about monitoring power and energy with groov products. The groov RIO EMU simultaneously measures volts AC RMS and amps AC RMS on Category III wye (up to 400 VAC) or delta (up to 600 VAC) circuits. It can monitor three-phase AC current using 0.333 V, 1 V, or 5 A current transformers (CT). (Opto 22 offers a range of split-core current transformers suitable for the groov RIO EMU.) Each phase can be configured to ignore signals below a specified threshold in power measurement and energy accumulation to help you tune signal accuracy. From the two measured field inputs, the module automatically calculates a total of 64 data values, including voltage and current; true, reactive and apparent power; power factor, frequency, net energy, and other values, as well as accumulated energy values for all phases. You can use groov RIO EMUs in several ways: As an edge energy monitoring unit, communicating data between loads and data destinations. You can: Push data directly to on-premises or cloud apps, databases, or other software
