PCB inspection system / soldering

Add to MyDirectIndustry favorites
PCB inspection system / soldering PCB inspection system / soldering
{{requestButtons}}

Characteristics

  • Applications:

    for PCB

  • Type:

    soldering

Description

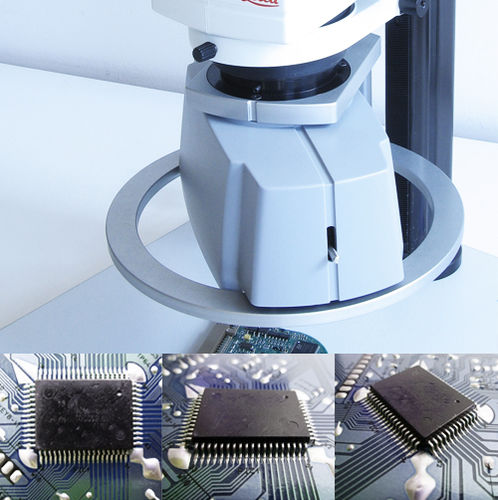

The microscope oblique adapter is perfect for SMT inspection without the need to move its head.
The device is good for a large object field and 100/115mm working distance. The device has a 0.3x objective. The adapter consist of an LED with ring light for oblique and direct view mode. The unit can be used easily.



With the oblique adapter the microscope has a 360° view without the need to move the object. The device can easily adapt to major microscope brands. With a push of a lever, the module can have a normal and oblique inspection.



The Adapter is perfect for SMT inspection, PCB inspection, soldering inspection, welding inspection, repair of watches, and jewelry, without the need to move its head.



Technical specifications:

Switchable modes: oblique and straight view

Working distance in oblique view: approx. 110mm

Working distance in straight view: approx. 115mm

Integrated objective: 0.3x

View angle max.: approx. 30°

Weight: approx. 1.6kg including adapter

For microscope stands with column extension min. 140mm

Illumination: LED ring light

Power supply: 100-240 V / 60W

3-core power cord EU included: 2m

Light point positioning in oblique view: battery powered, two AA 1.5V

dovetail adapter for all major microscope brands
