Laser calibration equipment MCV-2002

surface

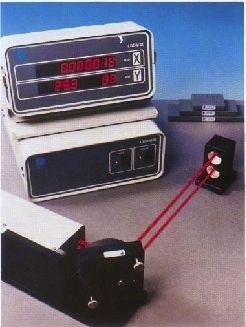

OPTODYNE'S MCV-2002 Linear and Angular Machine Calibration Instrument calibrates CNC machine tools, CMM's (Coordinate Measuring Machines), and other precision measurement machines and stages. Angular, straightness and flatness measurements can be made "onthe-fly". The unique dual beam design provides a rapid means to measure the surface flatness of surface plates, optical tables, machine tools, and bearing guides. OPTODYNE'S machine calibration instruments are based on our proprietary and patented Laser Doppler Displacement Meter (LDDMTM) technology. The total system is compact providing easy, convenient storage and transporting. Easy set-up procedures reduce overall machine calibration time, especially where multiple axes are involved. This, coupled with a modest initial investment, provides continual savings. The MCV-2002 dual beam system design provides the user a simple, easy-to-operate angular and linear capability in a single instrument. It is like "having two interferometers in one". One beam collects the angular data while the other beam monitors the linear position. The user friendly software, running on a laptop or notebook computer, collects and analyzes this data. The data can then be displayed on screen or printed in tabular or graphic form.
