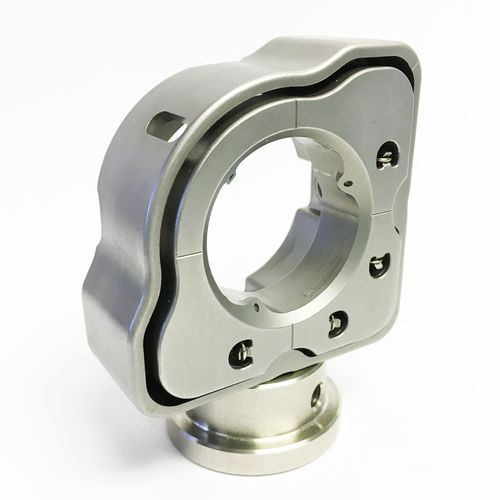

Mounting mirror holder MHX-series
stainless steel

mounting mirror holder
mounting mirror holder
mounting mirror holder
mounting mirror holder
mounting mirror holder
mounting mirror holder
mounting mirror holder
mounting mirror holder
Add to favorites
Compare this product


Characteristics

Options
for mounting
Materials
stainless steel

Description

MHX-series mounts are all-stainless steel holders made for standard 12.7 (0.5-in.) and 25.4-mm (1-in.) mirrors. They feature a hollow-frame design that not only provides a higher moment of inertia to maximize stiffness but also thinner, reduced-mass sections allowing it to reach thermal equilibrium faster than traditionally designed mounts. Thermal repeatability tests validate the effectiveness of the new frame design, showing lower deflection and equivalent repeatability against rival mounts. The MHX mount is loaded with additional features like center-post mounting, adhesive wells, and keying pin slots, all in the industry’s most compact and affordable stainless steel mount. 12.7-Mm Mirror Mount, Stainless Steel, High-Stability, Front-Loading, 2 Hex Adjusters SKU : MHX-12.7A This mount uses a special small head diameter screw for mounting. The 6 mm counterbore is sized for a 5.5 mm head diameter socket head cap screw. An 8-32 and an M4 screw of this type are included with the mount. Name:12.7-mm mirror mount, stainless steel, high-stability, front-loading, 2 hex adjusters Weight:0.0360kgs Optic Loading Side:Front Loading Angle Range:±3° Material:Stainless Steel Number of Control Axes:2 points Optic Diameter:φ12.7mm Item Returns:This item can be returned Products Name:12.7-mm mirror mount, stainless steel, high-stability, front-loading, 2 hex adjusters Compatible Optics Diameter:φ12.7mm Compatible Optics Thickness:2 - 6mm Clear Aperture:φ11.5mm Number of Adjustment Axes:2 point Mounting direction:Front Adjustment Range /Tilt:±3° Adjustment Range /Rotation:±3° Resolution /Tilt:About 0.8°/rotation Resolution /Rotation:About 0.8°/rotation Compatible Holders:- Quantity:1
