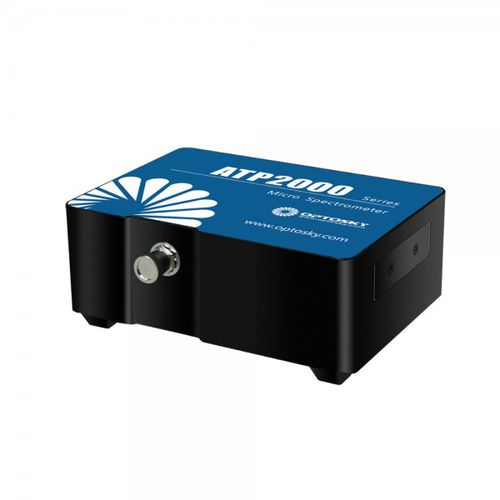

Flame spectrometer ATP2000H

CCDUVCMOS

Optosky ATP2000H UV-Vis spectrometer is a low-noise, high-performance, high flame speed(>2k fps). The sensor used 2048 pixel CCD responding from 200-1100 nm. ATP2000H is perfect for fast detection attribute to its high A/D converter frequency and the high speed data transmission. In ATP2000H memory chip, some algorithms to improve the performance are programmed solidly, such as wavelength calibration coefficients, linearity coefficients. It output the spectrum data to PC through USB 2.0 or RS232 interface. ATP2000H operates with a single +5VDC supply supplied from USB or duo-pin interface. ATP2000H has free SDK for customers self-developed, Optosky support C++, C#, Labview and Linux system SDK, which is very convenient for OEM customers to design solutions. Spectral region: 200-1100 nm Frame speed: >2Kfps Spectral resolution: 0.1-3 nm Optical configuration: crossed Czerny-Turner Linear low noise CMOS detector with 2048 pixel Integration times: 10μm-60s Supply voltage: DC 5V (USB Power) 16 bit, 2MHz A/D Converter Interface: USB2.0 (High speed) 20-pin connector for interfacing to external products LED spectrophotometer Fluorescence Biochemical analyzer Transmittance measurement UV gas analyzer Reflectance measurement Multi-parameter water quality analyzer
