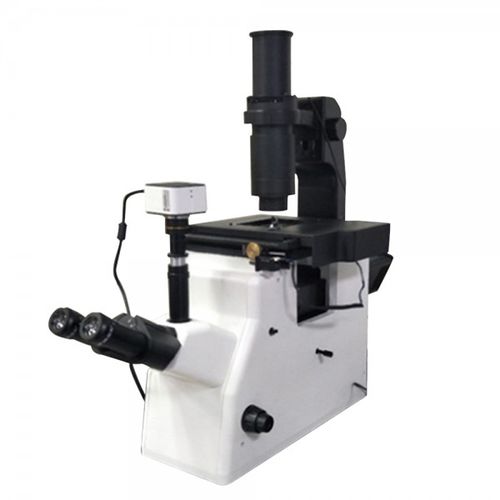

Infrared microscope ATH5500-17

laboratorymedicalspectral

ATH5500-17 is self-developed hyperspectral imaging microscope with compact size, HD, high quality，it comsists of microscope, hyperspectral imager and data processing work station. ATH5500-17 employs 1920X1080 pixels high performance CCD imaging component, clear images, low noise, the integrated exclusive high conpression images algorithm can improve database storage. Hyperspectral imaging technology provides spectral images with fast, accurate,and high spectral and spatial resolution, and universality. It can widely applied to medicine, pathology, pharmaceutical, life science.etc. As well as medical institute, research science, medical college, pharmaceutical companies laboratory research equipment. Spectral Range: 1000-1700nm Spectral Resolution: ＜35 Customized version of infrared high transmittance microscope system; Objective lens magnification: Standard: 4X, 10X, 20X; Optional: 40X, 100X Medical Institute, Cancer tissue sorting, blood cell categories Research institute, Universities and colleges Pharmaceutical companies, Chinese medicine fake or true Food Safety, Meat origin ID Micro plastics identification Minerals sorting Forensice identification, Documents identification Biological science, bateria, cell analysis material science, micro materials detection
