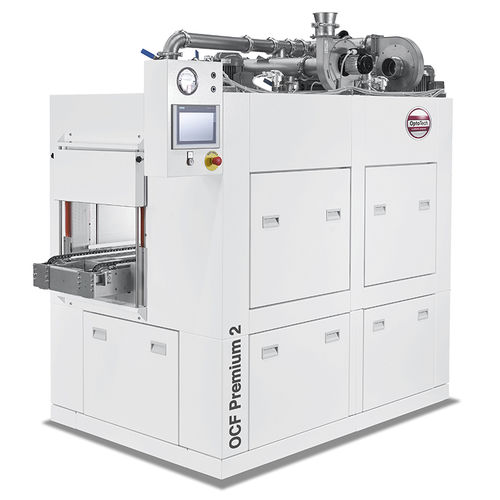

Curing furnace OCF Premium 2

conveyorcontinuous

The OCF Premium 2 is especially designed for curing coatings on ophthalmic lenses in a continuous conveyor furnace after the hardcoating process. For lens trays that can be stacked on up to 3 layers. There is space for a maximum of 7 trays in a row in the furnace. A maximum of 21 trays can thus be processed at once in the continuous furnace. Suitable for ophthalmic lenses hardcoated with non-solvable lacquers. The conveying speed can be set variably (10mm/min to 50 mm/min), as can the working temperature (110° C to 130° C). The OCF Premium 2 consists of 2 modules, divided into 2 regulated heating zones (inlet and outlet module. Each with heating and control zone). Modular design of the system which allows different furnace setups (number of modules / conveyor length). Equipped with a state-of-the-art PLC controller with 7” touch panel. Construction and equipment of the cleanroom furnace are either CE or UL compliant.
