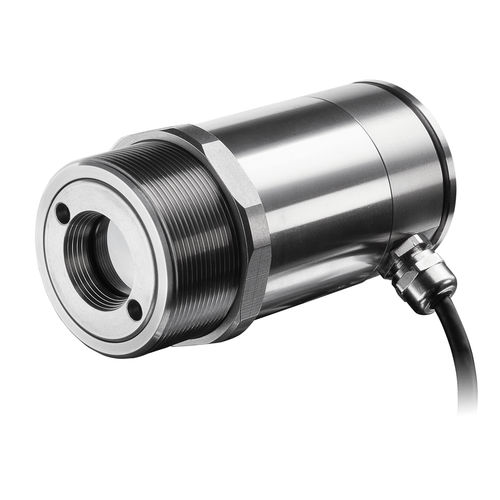

Infrared thermometer CSlaser 2M

digital°C50:1

The Optris CSlaser 2M infrared thermometer is specifically engineered for precise temperature measurement of metallic surfaces, metal oxides, and ceramics. This pyrometers short measuring wavelength ensures accurate readings across a wide range of materials. Equipped with an innovative double laser sight, it offers precise marking of the measuring spot, enhancing measurement accuracy. With temperature ranges from 250 °C to 1600 °C, measuring spots starting from 0.5 mm, and response times as low as 10 ms, this IR sensor is suitable for various industrial applications. Available in temperature ranges of 250 °C to 800 °C (2ML) or 385 °C to 1600 °C (2MH), and featuring IP65 (NEMA-4) front-mountable design for vacuum processes (up to 10–3 mbar), the CSlaser 2M is adaptable to diverse industrial settings. The CSlaser 2M sensor offers a wide range of temperature measurement options tailored to specific requirements, spanning from 250 °C to 800 °C (2ML) or 385 °C to 1600 °C (2MH). The pyrometers high optical resolution enhances precision and allows distance-to-spot size ratios of 150:1 (2ML) and 300:1 (2MH), ensuring accurate temperature readings even from far distances. The infrared sensor maintains exceptional system accuracy, with deviations of ±(0.3% of reading +2 °C) at an ambient temperature of 23 ± 5 °C, providing reliable radiometric temperature data for various metal applications. Additionally, this infrared thermometers outstanding repeatability, with variations of ±(0.1% of reading +1 °C) under similar ambient conditions, highlights its consistency and reliability in temperature monitoring tasks.
