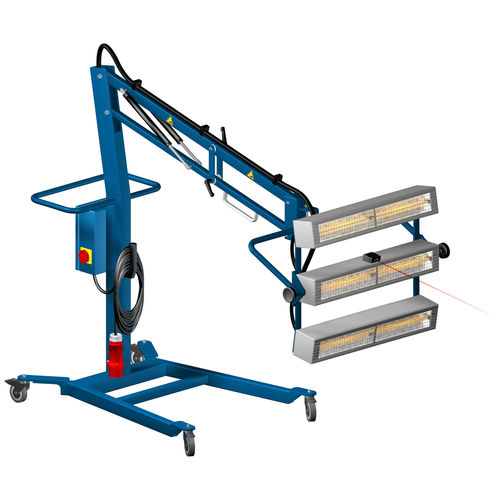

Mobile infrared heater IRM series

electricdryingcuring

• perfect solution for large dimension application and spot repair • optimal agility in positioning • 10 kW power (more variants on request) • drying area approx. 85 x 130 cm • automatic temperture control • temperature measuring with radiation pyrometer including pilot light • digital timer for an automatic switch off function • soft start • integrated cooling fans • pivotable and rotateable IR-field with height adjustment • easy to install with 16A CEE plug and 10 m connection cable • lockable big bearing wheels ► - performance level at 100% within 1-2 seconds -> no heat-up time or cooling-off period ► - max. connected load 10 kW (4 x 2 kW + 2 x 1 kW) - 3 x 400 V + N + PE (50/60 Hz) ► - digital température control with actual value and set point display ► - digital timer for drying time 0...9999 min ► - automatic température control with radiation pyrometer, distance ratio 15:1 (measuring spot 0 3.7 cm at 55 cm working distance) ► - starting ramp adjustable for smooth starting ► - laser pilot light for measuring spot marking ► - Able to reach ail parts of the bodywork. From sill panel to roof (even SUVs). ► - homogeneously heats an area of W=0,85 m; H=1,3 m ► - working distance 55 cm ► - height-adjustable arm from approx. 48 ... 236 cm ► - automatic counter balance through gas spring ► - IR-field stepless inclinable and swiveling ► - emitter field tilting stepless (90°) ► - ail settings lockable ► - IR modules use integrated fans to keep the casings surfaces cool and keep dirt away from the reflector and the emitter.
