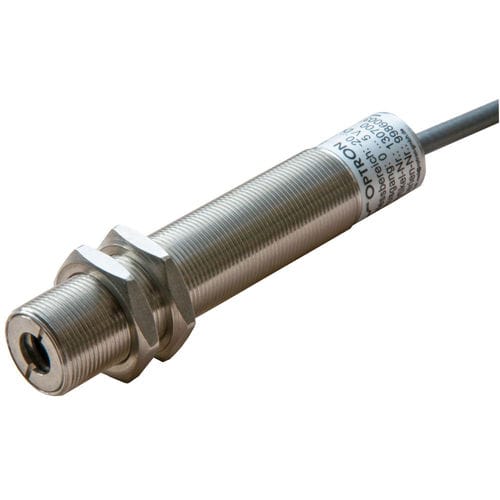

Stationary infrared pyrometer IN 4000
IP65compactstainless steel

stationary infrared pyrometer
stationary infrared pyrometer
stationary infrared pyrometer
Add to favorites
Compare this product


Characteristics

Configuration
stationary
Other characteristics
IP65, compact, stainless steel, non-contact
Temperature

Min.: -20 °C (-4 °F)

Max.: 500 °C (932 °F)

Description

• stationary infrared-pyrometer for temperature measuring of non-metallic surfaces • compact and low-cost • measuring range: -20...500 °C • distance ratio: 13:1 in focuspoint • standard measuring spot: Ø11,5 mm at 150 mm distance • smallest measuring spot: Ø6,8 mm at 75 mm distance • spectral range: 8-14 µm • output: 0-5 V (scalable) • additional communication: RS232 • power supply: 10-28 VDC • connection cable: 3 m (shielded) • option: protection armature with insolated mounting Pyrometer for non-contact temperature measurement of non-metallic or coated surfaces between -20 to 500°C ●Wide temperature range from -20°C to 500°C ● Output: 0 ... 5 V DC (scalable) ●Rugged IP65 stainless steel housing ●Sensor status / self diagnostic indicator LED ●150 ms response time ●RS232 digital communications for sensor set-up and monitoring ●Alarm output
