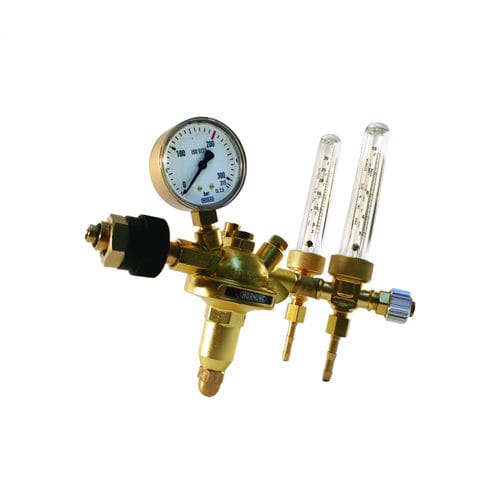

Gas pressure regulator 1.2.0144

membranetriplesingle-stage

Special Argon Pressure Regulator The pressure regulator can be tightened by hand without the need for a spanner. It reduces the stored bottle pressure from max. 200bar (on request 300bar) to an outlet pressure which is adjusted at the flowmeter. The flowmeters are used to set the required flow in l/min. Important: The pressure regulator has a constant outlet pressure of 2.5bar which is necessary to protect the gas flow sensor of the orbital unit. Control range: Twin flowmeter outlet: 1 - 16l/min, 3 - 30l/min Triple flowmeter outlet: 1 - 16l/min, 3 - 30l/min, 5 - 55l/min Versions: - Special Argon Pressure Regulator with twin flowmeter, brass - Special Pressure Regulator with twin flowmeter for H2-gases, brass - Special Argon Pressure Regulator with triple flowmeter, brass Pressure regulators with different connections and for use with other gas types or nickel-plated version available on request. Optional: - 200 / 10 bar argon pressure regulator - 0.5 - 10 bar compressed air pressure regulator ...
