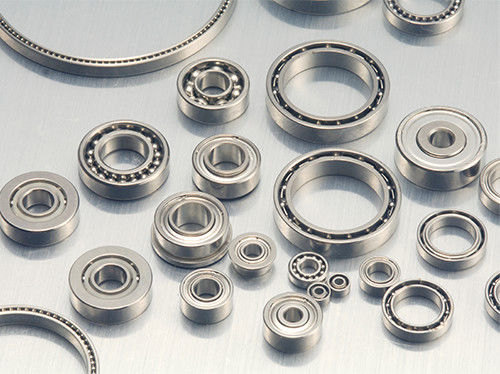

Ball bearing
radialdeep grooveprecision

ball bearing
ball bearing
Add to favorites
Compare this product


Characteristics

Rolling element
ball
Configuration
radial, deep groove
Other characteristics
precision, low-friction
Applications
flange
Inside diameter

Min.: 1.5 mm
(0.06 in)

Max.: 10 mm
(0.39 in)

Outside diameter

Min.: 4 mm
(0.16 in)

Max.: 19 mm
(0.75 in)

Width

Min.: 1.8 mm
(0.071 in)

Max.: 7 mm
(0.276 in)

Description

Radial bearings generally feature a single row of balls in a deep groove, and are used in a wide range of precision rotating mechanisms. They can accept loads in the radial direction and a marginal amount of load in the thrust direction, and are optimal for medium-speed, low-friction torque applications. Open, shielded, and flange type radial bearings are available, allowing you to freely select the rotation performance and model according to the surrounding environmental conditions. Machine tools, wire guides Semiconductor operating devices, ball screw bearing belt transport mechanism
