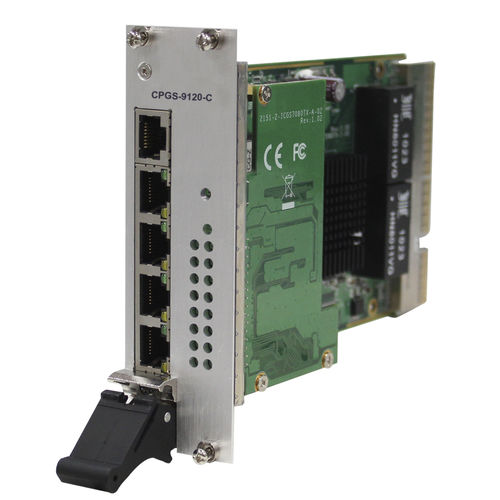

Managed Ethernet switch card CPGS-9120-C

5 ports12 ports10/100BaseT(X)

ORing’s CompactPCI series Ethernet switches are designed for industrial applications, such as factory automation, vehicle, and railway applications. CPGS-9120-C is CompactPCI managed redundant ring Ethernet switch with 12x10/100/1000Base-T(X) ports in CompactPCI socket which is specifically designed for the toughest and fully compliant with EN50155 requirement. The switch support Ethernet Redundancy protocol, O-Ring (recovery time < 30ms over 250 units of connection) and MSTP (RSTP/STP compatible) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. CPGS-9120-C supports wide operating temperature from -40°C to 70°C which can fulfill most of the requirement of operation environment. Besides the Web-based interface, Telnet and console (CLI) configuration, CPGS-9120-C can also be managed centralized and conveniently by Open-Vision. Therefore, the switch is one of the most reliable choices for rolling stock and highly-managed Ethernet application. Features -Leading EN50155 compilant Ethernet switch for rolling stock application -Supports 3U and 8HP CompactPCI form factor and hot swapping -PICMG 2.0 spécification compatible -Support 8xl0/100/1000Base-T(X) ports on CompactPCI sockets and 4xl0/100/1000Base-T(X) ports on copper ports -Support Jumbo frame up to 9.6K Bytes -Supports O-Ring (recovery time < 30ms over 250 units of connection), MSTP/RSTP/STP (IEEE 802.1s/w/D) for Ethernet Redundancy -Open-Ring support the other vendor' s ring technology in open architecture -O-Chain allow multiple redundant network rings -Support standard IEC 62439-2 MRP (Media Redundancy Protocol) function
