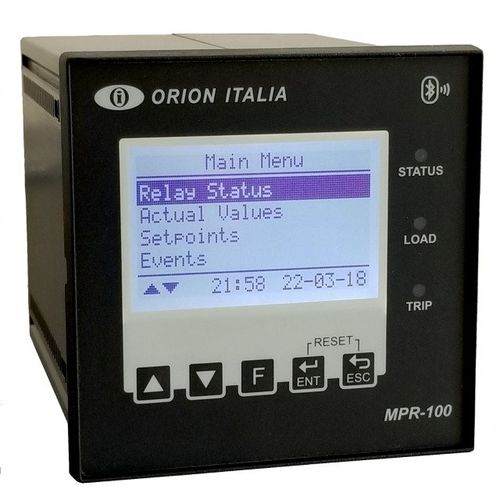

Motor protection relay MPR-100
phase unbalanceover-voltageunder-voltage

motor protection relay
motor protection relay
Add to favorites
Compare this product


Characteristics

Measured/monitored value
phase unbalance, over-voltage, under-voltage, over-current, under-current, thermal, phase sequence, phase loss, power, frequency, power factor
Network
three-phase, AC
Applications
motor
Mounting
panel-mount
Communication
RS485, Modbus RTU, Bluetooth
Other characteristics
digital, programmable, differential, multifunction, electronic, with fault indication, retrofitting, smart

Description

Motor Protection Relay The device has been designed for continuous monitoring of electrical parameters in low voltage systems. It allows direct, close-distance or remote monitoring via RS-485 and bluetooth connectivity, of the system’s general conditions as it immediately signals faults. MPR-100 permits the activation of additional specific protection functions for motor industrial applications. Its versatility makes it the perfect solution for oil & gas, minery and all heavy-duty environments. Applications Metering & protection of three-phase asynchronous motors Commercial & industrial utility Flexible control for demand load shedding, power factor* Power quality analysis* Digital Measurement True RMS Phase Currents True RMS Line Voltage Active Power (kW) Reactive Power (kvar) Apparent Power (kVA) Power Factor (PF) Voltage and Current THD Frequency (Hz) Voltage and Current Harmonics (up to 11th) Vectorial Ground Current Energy Phase Sequence (see table on pg. 2 of the MPR-100 Brochure [Download section below] for function availability on the model required)
