Analysis software module FFT

testreportingWindows

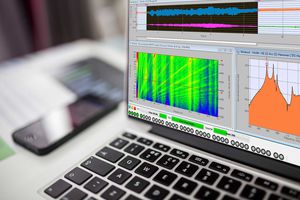

How to perform a FFT analysis? Our FFT analyzer software module is fully dedicated to narrow band spectral analysis topics. The FFT module offers standard to advanced analysis results: Trigger blocks, averaged in time domain or instantaneous, weighted or not Spectra (up to 25601 lines at 40 kHz) , instantaneous, averaged in spectral or time domain, averaged complex Cross-spectra, FRFs (H1, H2), coherence, cross-spectra Lissajous, envelope demodulation Orders, overall bandwidth tracking Acoustics and human vibration weightings Any units: RMS, Peak, pk-pk, PSD, ESD, RMS PSD Any integration: single/double integration (from acceleration to displacement), single/double differentiation (from velocity to angular acceleration) Acquiring and reporting bump/impact tests has never been so easy: The Force/Response windows apply to all channels simultaneously with a live overlaid of both weighted and not It shows the coherence and averaged FRFs before accepting or canceling the impact Impact route follows Excel-based steps sequence with direct indication and navigation from the NVGate control panel Automatic peak detection in the spectra with immediate Excel feeding for live bump test reports
