Electrical power supply connector MKE 01

wire-to-boardwire-to-wirescrew

Product name

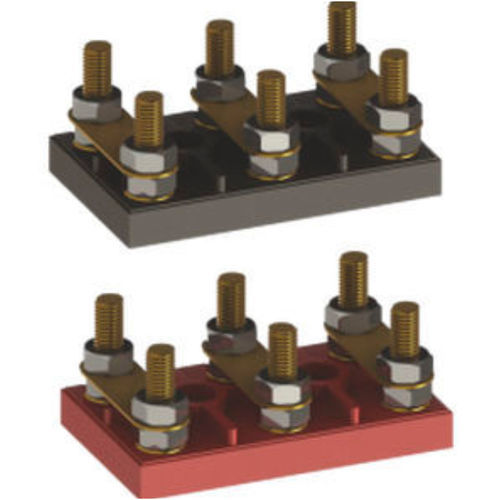

Wire connectors — MKE series (MKE 01 to MKE 06)

Details
Insulated mechanical connectors for secure electrical wire terminations in panels, terminal blocks and industrial machinery. Designed for bolted connections and reliable conductor clamping in industrial electrical installations.

Technical Data
Brown Code | Black Code | Boy | L | B | H | I | c | d | h | x | z | d1 | d2 | d3
MKE 01 | MK 01 | 56-63 | 40 | 25 | 8,5 | 15 | 15 | M4 | 13 | 4 | 6 | 4,5 | 8 | 11
MKE 02 | MK 02 | 71-80 | 50 | 30 | 8,5 | 20 | 20 | M4 | 15 | 4 | 7,5 | 6,3 | 10,5 | 14,8
MKE 03 | MK 03 | 132 | 60 | 37 | 10 | 23 | 23 | M5 | 19 | 6,5 | 7,5 | 6,3 | 10,5 | 14,8
MKE 04 | MK 04 | 160-180 | 72 | 44 | 12 | 28 | 28 | M6 | 24 | 8,5 | 7,5 | 6,5 | 10,5 | 15,8
MKE 05 | MK 05 | 225-250 | 91 | 56 | 12,5 | 35 | 35 | M8 | 28 | 10 | 7,5 | 6,5 | 10,5 | 15,8
MKE 06 | MK 06 | 280 | 115 | 70 | 15,5 | 45 | 45 | M10 | 34 | 10,5 | 11 | 9,5 | 15,5 | 21,8

Characteristics / technical specifications

• Material: Polyamide V2 V0 (optional) + Glass fibre reinforced
• Colour options: Brown, Black
• Permanent operational temperature range: -20 °C to +100 °C
• Short term maximum operational temperature: -30 °C to +150 °C
• Available codes / sizes: MKE 01 / MK 01; MKE 02 / MK 02; MKE 03 / MK 03; MKE 04 / MK 04; MKE 05 / MK 05; MKE 06 / MK 06
• Detailed dimensional table (per code) included above: Boy, L, B, H, I, c, d, h, x, z, d1, d2, d3 values
