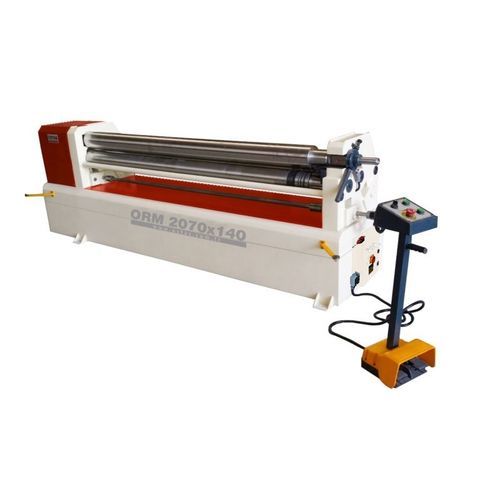

Hydraulic bending machine ORM seriesfoot-operatedsteel tubedigital
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic, foot-operated
- Product handled
- steel tube
- Control
- digital
- Other characteristics
- mobile
- Bending capacity
2 mm, 3 mm, 4 mm, 5 mm
(0 in, 0 in, 0 in, 0 in)- Bending length
1,070 mm, 1,270 mm, 1,570 mm, 2,070 mm, 2,570 mm
(42 in, 50 in, 62 in, 81 in, 101 in)- Roller diameter
2,500 mm, 2,725 mm, 3,230 mm, 3,725 mm
(98 in, 107 in, 127 in, 147 in)- Overall length
800 mm
(31 in)- Total height
1,100 mm
(43 in)- Weight
Min.: 1,000 kg
(2,205 lb)Max.: 1,930 kg
(4,255 lb)- Total power
2.2 kW
(3 hp)
Description
Top and bottom rolls powered by a single gearbox and gear system tensile strength
SAE 1050 Quality Certificated steel rolls with high
Cast steel main frames
Wire grooves at the end of the rolls
Accordance with CE standards
Standart Donanım
Mobile electrical foot panel
Conical bending device
User Manual
Opsiyonel Donanım
Moving up and down the rear top
Digital display for rear roll
Hardened rolls
