Large capacity die head

Overview
Anchor bolt threading machines form external threads on bolts and rods by cutting grooves with dieheads. These machines are used to produce structural anchor bolts and related fasteners from high-strength steel, enabling threaded ends for installation into pre-drilled foundations or concrete. Accurate thread dimensions and pitch are critical for secure connections in construction and infrastructure projects.

Anchor Bolt Threading Machines for Structural Steel Applications

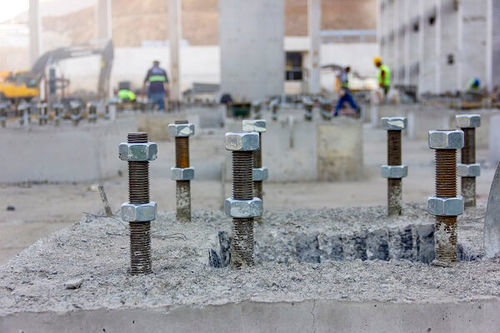

Anchor bolts secure structural elements to concrete foundations and platforms. Typical threaded components include threaded studs, turnbuckles, U-bolts, J-bolts and L-bolts used in buildings, bridges, stadiums, signs and industrial posts. Oster Manufacturing supplies bolt threading machines designed for structural fastener production and recommends using dark thread-cutting oil to maintain consistent thread quality.

High-performance 792ALX Pipe & Bolt Thread Cutting Machine
The 792ALX rotating diehead is optimized for sizes 2 in and under and is widely used for anchor bolt and structural bolt production. Its rotating diehead allows the spindle to continue rotating between workpieces, increasing throughput and enabling threading of pre-bent J-bolts and L-bolts without damaging existing bends or threads.

Anchor Bolt Threading Machines vs. CNC Lathes
Oster high-capacity models such as the 784 and 716 use heavy-capacity dieheads capable of threading up to 4 in structural fasteners in a single pass, and larger configurations handle greater diameters (example: 716 cited for capacities up to 6 in). Dedicated bolt threading machines often outperform CNC lathes for single-pass threading of large structural bolts and are simpler to operate without specialized certifications, reducing operating costs. Five-die configurations for larger sizes reduce strain and wear on individual threading dies compared to four-die heads.

Company & Applications
Oster Manufacturing has over 120 years of experience producing pipe and bolt threading machines for industries including oil and gas, manufacturing, agriculture, construction and chemical processing. Their machines are engineered for production environments, emphasizing repeatable thread quality, uptime and long service life.

Technical specifications

• Typical models referenced: 792ALX, 784, 716.
• 792ALX rotating diehead: optimized for sizes 2 in and under; spindle continues rotating between workpieces; suitable for threading bent J-bolts and L-bolts.
• 784: heavy-capacity diehead capable of threading up to 4 in structural steel fasteners in a single pass.
• 716: heavy-capacity capability for larger diameters (example capacity cited: up to 6 in).
• Diehead configurations: five-die dieheads for larger sizes reduce die strain versus four-die heads.
• Recommended cutting fluid: dark thread-cutting oil for consistent thread quality.
• Applications: structural anchor bolts, threaded studs, turnbuckles, U-bolts, J-bolts, L-bolts and other structural fasteners.
• Designed for high-production environments; emphasis on ease of operation and long-term durability.
