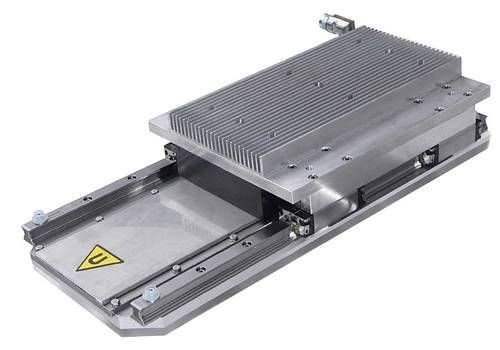

DC linear motor LIFS seriesiron-coresynchronousbrushless
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- iron-core, synchronous, brushless
- Speed
Min.: 0 m/s
(0 ft/s)Max.: 10 m/s
(32.81 ft/s)- Force
Min.: 100 N
Max.: 10,000 N
Description
CHARACTERISTICS
Electric direct drive
High speeds
No gear reduction, no backlash
No rotor loss
Equipped with NdFeB magnets (rare earth magnets)
We will be happy to adjust the electrical and mechanical design elements according to your requirements.
FEATURES OF OSWALD MOTORS
Compact, robust, high power density
Maintenance-free / low maintenance
Coil design according to customer specifications
Long useful life
TECHNICAL SPECIFICATIONS
Forces during continuous-run operation:1000 to10.000 N
Speed:up to 10 m/s
Swing:Optionally modular
Cooling:Air or liquid
Safety Class:IP54 (primary / secondary component)
