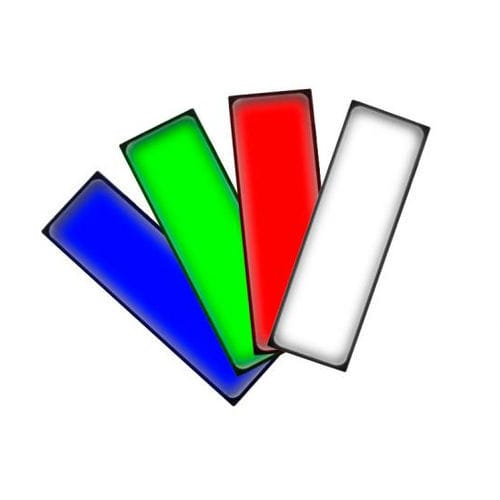

LED machine vision light OVF-20-4

whiteredgreen

Use standard mold, stitching installation, insure the stable construction. Good radiating design make sure the lights quality stable and long life. 1. High density LED array, superior evenness, high brightness. 2. The specified lens for the bar lights, effectively changed the LED light angle. Narrow which focus the light into a beam. And wide, which spreads the light out over a broad area. 3. The diffusion plate is optional, it can diffuse the light equality. 4. Good radiating design make sure the lights quality stable and long life. 5. Using the Standard mold to manufacture lights shell, easy installed, freely adjustable light angle. Features: Adopt the strip LED,the evenness is high High degree of freedom Peak wavelength: Red:600-630nm Green:535-530nm Blue:465-470nm White : 6500k (Color temperature) Ultraviolet: 365-395nm Infrared: 850-860/930-940nm Operating environment: -20℃~+55℃. Humidity:10-99%( non-condensing) Easy installation and low maintainance rate ; The imported LED chips of light source has good performance of low power consumption,high efficiency and long life time; High quality of AC/DC LED driver with the good parameters of low power consumption ,protect circuit function and long life time; Qualified aluminum with good dissipation,transparent and tempered glass; Good quality of waterproof connector,aluminum PCB,silicone rubber sealing ring and reflector/lens; Rated working temperature:-25℃~+55℃. Application : Test the date on the packaging bag; Inspect surface highlights and reflective objects; Monitor the dimensions of IPA high precision components Checking package and label.
