LED light module HMLED

Overview

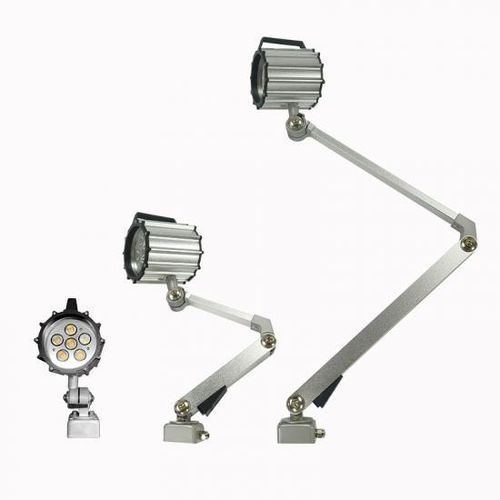

Otennlux HMLED long-arm LED work light designed for CNC lathes and milling machines. Constructed from aluminum alloy with ABS parts and high-precision waterproof sealing, the unit provides IP65 protection against coolant, oil and dust. The multi-section rotary joint and 320° rotation base enable flexible multi-angle positioning; the head includes an integrated on/off switch.

Key features

• IP65 waterproof and coolant-resistant design suitable for CNC machine tools
• Certifications: CE / CCC / ROHS (additional UL / ETL and anti-explosion approvals referenced)
• Lamp body diameter: Ø112 mm (long-arm version)
• AC/DC LED driver with protection circuit for low consumption and extended lifetime
• Housing: aluminum alloy with ABS components for corrosion resistance and heat dissipation
• Uniform light distribution; CRI > 80
• Imported high-efficiency LED chips for low power draw and long life
• Rated operating temperature: -25 °C to +55 °C
• Available wattages: 9W / 15W / 20W
• Rotation base: 320° rotation; multi-node arm offers 360° beam adjustment and multi-directional positioning
• Mounting: four-hole screw base for stable installation
• Durability: waterproof, rust-proof, wear- and impact-resistant

Additional product information

• Item no.: HMLED
• Payment terms: EXW / FOB / CNF
• Product origin: China
• Color: White
• Shipping port: Guangzhou / Shenzhen / Shanghai
• Lead time: 5-7 days
• Wattage options: 9W / 15W / 20W
• Voltage options: 24V or 100-277V
• IP rating: IP65
• LED color: White
• LED life: ≈50,000 hours
• Warranty: 2 years (product table); 3 years referenced elsewhere on the product page
• Certifications mentioned: CE / ROHS / UL / ETL / CCC and anti-explosion related approvals

Technical specifications

• Product name: Long-arm CNC machine tools LED work light
• Brand: Otennlux
• Item No.: HMLED
• Material: Aluminum alloy (with ABS plastic parts)
• Wattage: 9W / 15W / 20W
• Voltage: 24V / 100-277V
• Protection rating: IP65
• LED color: White
• LED lifespan: ≈50,000 hours
• Diameter of lamp body: Ø112 mm
• Operating temperature range: -25 °C to +55 °C
• Driver: AC/DC LED driver with protection circuit
• CRI: > 80
• Mounting: base fixed with screws (four-hole fixing)
• Adjustability: multi-section rotary joint with multi-angle adjustment; 320° rotation base; 360° beam adjustment
• Certifications: CE / CCC / ROHS / UL / ETL (as stated)
• Warranty: 2 years (table) / 3 years (additional page claim)
