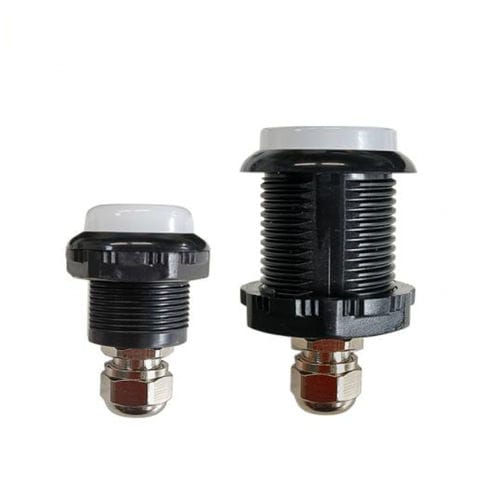

LED indicator light N18/N22

panel-mountoil-resistantexplosion-proof

Overview
Miniature LED machine indicator lights available in 18 mm and 22 mm diameters. Designed for industrial environments with three standard signal colors (Red, Yellow, Green) and 24 V DC operation.

Details
The smooth dome (18 mm / 22 mm) provides uniform illumination. Indicators are fully epoxy-encapsulated to protect electronics against harsh conditions. Rated IP69K for high-pressure, high-temperature washdown resistance; also oil- and dust-resistant.

Product information
Item no.: N18/N22
Payment: EXW / FOB / CNF
Origin: China
Shipping port: Guangzhou / Shenzhen / Shanghai
Lead time: 5-7 days

Technical table
Item name: IP69K 18 mm / 22 mm machine indicator lights
IP rate: IP69K
Color: R, Y, G (Red / Yellow / Green)
LED life: 50000 h
Diameter: 50 mm
Material: aluminium alloy + PC cover
Connector: M12 / 0.5 m cable
Accessories: Universal bracket
Voltage: 24 V DC
OEM: Supported

Certifications

• CE
• ROHS
• UL
• ETL
• CCC
• Anti-Explosion

Advantages

• Epoxy-encapsulated electronics for extreme durability
• High waterproof rating IP69K (waterproof, oil-proof, dust prevention)
• Smooth dome for uniform illumination
• Two compact diameters (18 mm / 22 mm) for space-constrained panels
• Long LED life (~50000 h)
• Manufacturer warranty: 3 years

Specifications / technical specifications

• Item no.: N18/N22
• Item name: IP69K 18 mm / 22 mm machine indicator lights
• IP rate: IP69K
• Color options: R, Y, G (Red / Yellow / Green)
• LED life: 50000 h
• Diameter (listed in table): 50 mm
• Available diameters (product sizes): 18 mm, 22 mm
• Material: aluminium alloy + PC cover
• Connector: M12 or 0.5 m cable
• Accessories: Universal bracket
• Voltage: 24 V DC
• Payment terms: EXW / FOB / CNF
• Origin: China
• Lead time: 5-7 days
• OEM: Supported
• Warranty: 3 years
