Light bar OLL7 series

LEDfor machine toolsfor machines

Product overview

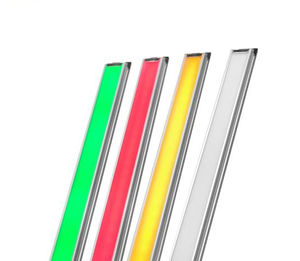

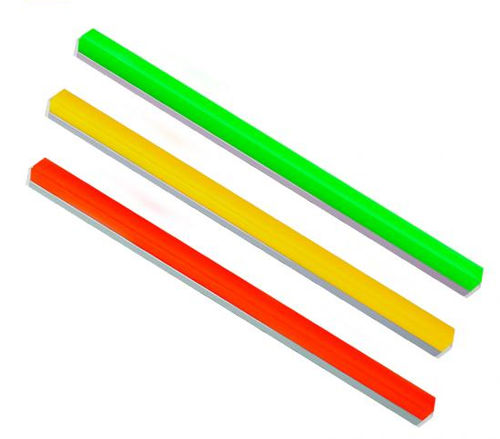

Otennlux OLL7 3-color LED tricolor signal bar light designed for machine tools and industrial automation. Aluminum alloy housing ensures efficient heat dissipation and mechanical resistance; acrylic diffuser provides high light transmittance with anti-glare design.

Features

• High-efficiency LED multi-function strip for clear status indication
• Acrylic diffuser with high transmittance and anti-glare surface
• Aluminum alloy body for heat dissipation and impact resistance
• Tricolor sequence: Red / Yellow / Green (RYG)

Available models / Sizes
Model | Length (MM) | END CODE
OLL7-238 — 238 — PNP/NPN
OLL7-300 — 300 — PNP/NPN
OLL7-346 — 346 — PNP/NPN
OLL7-400 — 400 — PNP/NPN
OLL7-454 — 454 — PNP/NPN
OLL7-500 — 500 — PNP/NPN
OLL7-600 — 600 — PNP/NPN
OLL7-670 — 670 — PNP/NPN
OLL7-778 — 778 — PNP/NPN
OLL7-800 — 800 — PNP/NPN
OLL7-1000 — 1000 — PNP/NPN
OLL7-1200 — 1200 — PNP/NPN
OLL7-1426 — 1426 — PNP/NPN
OLL7-1500 — 1500 — PNP/NPN
OLL7-1700 — 1700 — PNP/NPN
OLL7-2000 — 2000 — PNP/NPN

Applications

• CNC machine tools and machining centers
• Machine tools, laser equipment and production machinery
• Assembly lines and automated production systems
• Security equipment and monitoring systems
• General industrial signalling and lighting applications

Certifications

• CE
• ROHS
• UL
• ETL
• CCC
• Anti-Explosion (where applicable)

Warranty & Advantage

• Manufacturer with extensive experience in LED work lights and signal lighting
• Standard product warranty: 3 years

Technical specifications

• Commercial name: OLL7
• Product type: 3-color tricolor LED signal bar (Red/Yellow/Green)
• Housing material: Aluminum alloy (heat dissipation, impact resistance)
• Diffuser: Acrylic with high transmittance and anti-glare design
• LED: High-efficiency multi-function LED strip
• End code / Output type: PNP or NPN
• Available lengths: 238, 300, 346, 400, 454, 500, 600, 670, 778, 800, 1000, 1200, 1426, 1500, 1700, 2000 mm
• Color sequence: Red / Yellow / Green
• Typical applications: CNC machines, machining centers, assembly lines, security & laser equipment
• Certifications: CE, ROHS, UL, ETL, CCC, Anti-Explosion (where applicable)
• Warranty: 3 years
