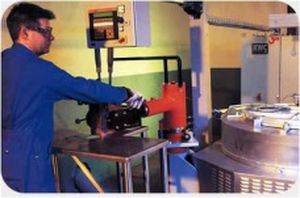

Semi-automatic operated machine by moving the dies manually and filling of the die by modern, fully computerised low pressure die casting technology.
Cycle time approx. 30 sec with 4 operators
Capacity per shift (8 hours) approx. 770 castings
This machine stands out for its automatical casting process by low pressure technology combined with manual die manipulation To reach the maximum capacity, up to four operators with up to four identical or different dies can work simultaneous.
The working principle of the machine:
Manual setting of die with cores on the manipulator. Swivelling over onto the furnace and automatical casting
Remove die from the manipulator, opening it to remove the casting
Cleaning, cooling and coating of die in a blackwash bath
Core setting and moving die back to the manipulator
The manipulation of the dies remains manual.
Manual furnace charging with solid material.
Charging of liquid material is possible.
