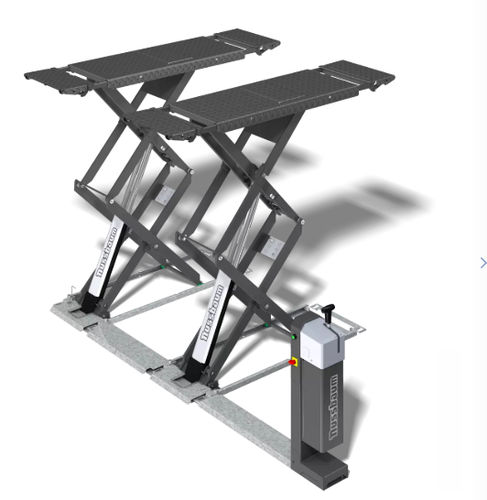

Double-scissor post lift JUMBO 3500 HF X-TEND
3.5 tonhydraulic400 V

double-scissor post lift
double-scissor post lift
double-scissor post lift
double-scissor post lift
double-scissor post lift
double-scissor post lift
Add to favorites
Compare this product


Characteristics

Type
double-scissor
Maximum load
3.5 ton
Operation
hydraulic
Voltage
400 V
Applications
for car
Other characteristics
platform
Lifting height

Min.: 103 mm
(4.055 in)

Max.: 2,005 mm
(78.937 in)

Lifting time

35 s

Motor power

3 kW
(4.08 hp)

Description

The hydraulic double scissor lift JUMBO LIFT 3500 HF X-Tend with a load capacity of 3500 kg is the perfect all-round lifting platform for the automotive workshop where speed, flexibility and reliability are in demand. With its small space requirement, its high lifting height of 2005 mm, and its two times adjustable platforms and flat design, it is the lift that no professional garage should be without. Whether for tire changes, oil changes, working on the engine, check-in inspection, for low-lying sports cars, SUVs or vehicles such as the new long BMW 7 Series, the JUMBO LIFT 3500 HF X-Tend is ready to lift and lifted at lightning speed. The lifting platforms can be extended twice: In addition to the foldable extensions available with the "classic" Jumbo Lift NT and the flexible installation width, the new Jumbo Lift HF X-Tend has extendable extensions. The length of the mounting platforms can be adjusted from [AttributeShortCode,attribute=Aufnahmelänge min,attributeid=47] mm. The ramps can be locked and unlocked as usual in one simple movement. The JUMBO LIFT 3500 HF X-Tend is developed and manufactured by Nussbaum at its main plant in Kehl-Bodersweier in Baden-Württemberg. Extremely flat construction: Drive-on height of only 103 mm Twice length-adjustable platform- Variable length of [AttributeShortCode,attribute=Aufnahmelänge min,attributeid=47] mm Flexible mounting: Adjustable width, no compressed air access required 360° access Can also be installed flush with the floor: Jumbo Lift 3500 HF X-tend inground Three times guaranteed quality: Power unit, hydraulic cylinder and the complete lifting platform are tested before dispatch. Developed and manufactured in Germany
