2-post lift POWER SLH 3500 ADVANCED DT
3.5 tonhydraulicfor car

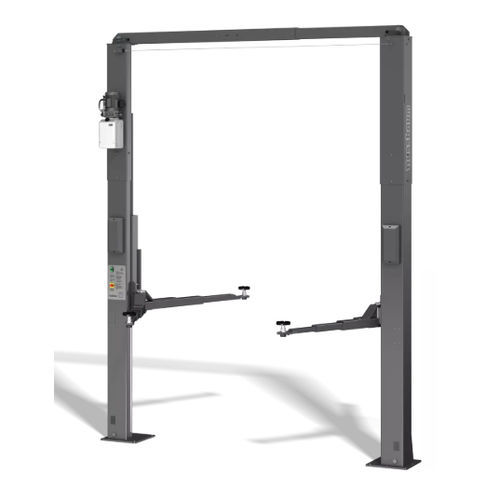

2-post lift - POWER SLH 3500 ADVANCED DT - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER SLH 3500 ADVANCED DT - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car
2-post lift - POWER SLH 3500 ADVANCED DT - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 2
2-post lift - POWER SLH 3500 ADVANCED DT - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 3
2-post lift - POWER SLH 3500 ADVANCED DT - Otto Nussbaum GmbH & Co. KG - 3.5 ton / hydraulic / for car - image - 4
Add to favorites
Compare this product

Characteristics

Type
2 posts
Maximum load
3.5 ton
Operation
hydraulic
Applications
for car
Voltage
400 V
Lifting height

Min.: 120 mm
(4.724 in)

Max.: 1,966 mm
(77.402 in)

Minimum height

Min.: 120 mm
(4.72 in)

Max.: 166 mm
(6.54 in)

Lifting time

35 s

Motor power

2.2 kW
(2.99 hp)

Width between colums

Min.: 2,436 mm
(95.91 in)

Max.: 2,676 mm
(105.35 in)

Description

The hydraulic 2 post lifts of the POWER LIFT SLH series are based on the proven Nussbaum technology and are particularly space-saving, flexible and individually configurable. The POWER LIFT SLH is the perfect lift for daily use in a consistently busy workshop. With its fast lifting and lowering times, mechanical safety pawls and synchronized wire rope hoists, the 2 post lifts of the POWER LIFT SLH series offer the perfect combination of performance, durability, high-quality hydraulics and mechanical safety as well as industry-leading pick-up options. The POWER LIFT SLH 3500 Advanced DT is a fully hydraulic 2 post lifts without base frame for lifting commercial cars and vans and equipped with pushbutton control. The air-cooled power unit with electric pawl release provides fast lifting and lowering operations. The power unit is mounted on the operating column and is easily accessible for maintenance. Each power unit and hydraulic cylinder are internally tested prior to dispatch. The CE-Stop is pre-installed on the POWER LIFT SLH Advanced, eliminating the need for a suspended foot deflector which ensures freedom of movement. The asymmetrical 2-times telescopic support arms with finely adjustable pick-up plates and quick adjustment (patent pending) allow excellent access to most pick-up points of common vehicle sizes and weight classes. In addition, in combination with the asymmetrical lifting carriage, they offer optimum door clearance as well as door protection on the columns. The integrated parking position enables controlled lowering of the lifted vehicle as well as convenient and safe working on the vehicle.
