Industrial camera 20427 series

digitalfull-colorCMOS

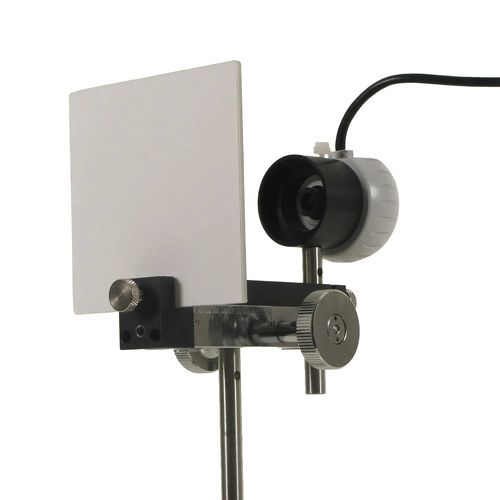

• Rapid image scanning in optics lab • Comprehensive software like Scientific Workshop provided • Easy to install and use This affordable and high-performance color camera allows you to easily and quickly digitize all your optics lab work: focalometry, diffraction, and interferometry! It is compatible with optical bench carriers for 10 mm diameter rods. Ease of use: - the image to be processed is displayed on a transdiffusing screen, - the camera records this image, - the software analyzes it: the intensity profile is accessible, as well as its distance calibration. Data utilization: Without leaving the software, two acquisition modes are directly accessible: - profile of the light intensity in space for diffraction or focalometry, - temporal evolution of the light intensity in a restricted area of space for dynamic interferometry. The data can be saved and processed later by the student. - 1 camera: USB digital, no driver needed (UVC), resolution 1920 x 1080 pixels RGB with manually adjustable lens - 2 screens: diffusing and frosted - 1 software: downloadable, Scientific Workshop type for Windows PC XP/Vista/Seven/Win 8/Win 10 - 1 support: adjustable by rack and pinion to optimize the viewing of observed phenomena, mounted on a Ø10 mm rod (compatible with standard optical mounts and stands) - 1 filter kit for camera: 1 linear polarizer and 2 optical densities DO1 and DO3 Delivered in a storage case.
