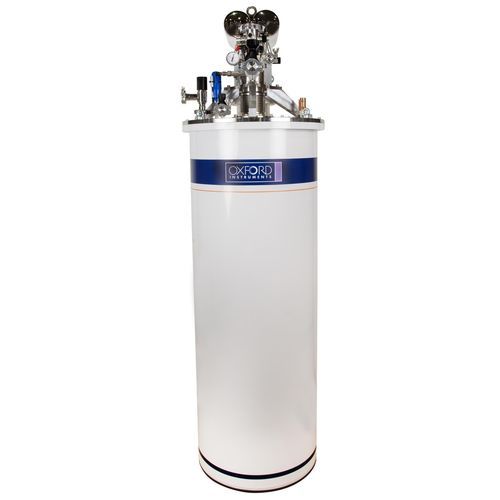

Superconducting magnet TeslatronPT

An integrated Cryofree® superconducting magnet system. Features • Integrated variable temperature insert providing sample temperatures between 1.5 K and 300 K supplied as standard with sample rod. • Standard magnetic fields up to 14 T in a compact geometry, with vector rotate magnet geometries available. • Optional high performance measurement probes with height adjustment and rotation options. • Lower base temperature can be obtained using our optional inserts < 300 mK with HelioxVT and < 25 mK with KelvinoxJT. • Low vibration - suitable for a wide range of sensitive measurements. • Fast and easy sample change into our separate sealed chamber. • Low power consumption - operate from a single pulse tube refrigerator. • No gas flow over sensitive samples - the system uses a static exchange gas around the sample. • Quick sample change via top-loading probe - the sample can be changed while the system is cold. • No liquid nitrogen required for operation – the system uses internal cold traps to remove contaminant. Measurement probes Measurement probes are available as both fixed sample and mechanical rotator. ESD Protected Sample Holders The PCB and LCC holders are ceramic Aluminium-Nitride (AlN) to optimise thermal conductivity. Electrical contact plating is Ni free to minimise the remnant field effects in the sample domain. The following sample holders are available with our range of measurement probes: • 20-pin LCC with ESD connector • 16-pin DIP (dual in-line) connector with ESD connector • 16 contact pad bare PCB for general purpose with ESD connector • 44-pin LCC – No ESD connector as there is not enough space
