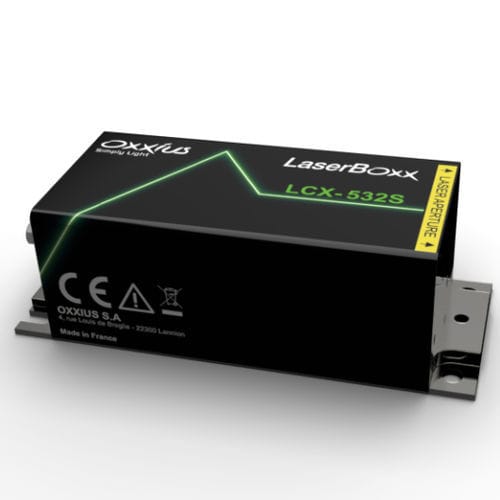

Single longitudinal mode laser LCX-532S

CWfiberadjustable wavelength

SLM CW Monolithic DPSS benefits – Up to 500 mW – Exceptional wavelength stability – 1pm – Lowest power consumption ≤ 12 W for LCX’s & LPX’s, any wavelength, less than 200 mW ≤ 15 W for LCX-532 & LCX-1064, 500 mW ≤ 15 W for LCX-561 300 mW – Low profile laser head (32 mm) – Tailored beam diameter capability (0.6 up to 1.4 mm) VBG stabilized Laser Diode modules benefits – Proprietary SLM locking routine – Enhanced beam quality versions • Raman Spectroscopy • Brillouin Scattering • Interferometry • Photoluminescence • Holography • Laser Doppler Velocimetry • Laser Ultrasonic • Dynamic Light Scattering • Material Analysis • Laser Marking Options Fiber coupling Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber. Electro-Mechanical shutter The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter. The fiber coupling and other options are fully compatible with the electro mechnical shutter. The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal. Heat Sink Forced air heat sink for LBX, LCX with 5V PSU Isolator 25 dB isolator mounted in shutter. 532nm Ultra Low Frequency Option for LCX-532S provide 70dB side mode suppression ratio. Dedicated for Raman spectroscopy. Available up to 200mW Wavelength selection Select a precise central wavelength. Contact us for more details Wavelength adjustment Tunability of the wavelength. Contact us for specifications
