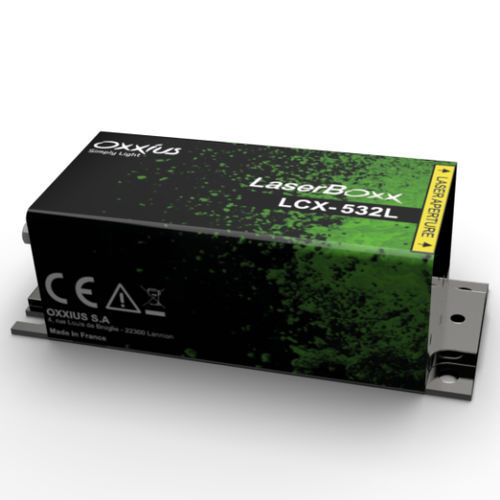

Continuous laser LCX-532L
solid-statevisiblefor medical applications

continuous laser
continuous laser
continuous laser
continuous laser
continuous laser
Add to favorites
Compare this product


Characteristics

Operational mode
continuous
Technology
solid-state
Spectrum
visible
Applications
for medical applications, R&D, for microscopes, instrumentation, microscopy
Other characteristics
compact, rugged, fiber-coupled, pigtailed, DPSS, diode-pumped, single-mode, stabilized, multimode
Power

Min.: 0.05 W

Max.: 0.3 W

Wavelength

532.3 nm

Description

The LCX-532L LaserBoxx are diode-pumped solid-state laser sources. The unique feature of these models is a proprietary, Alignement-free Monolhitic Resonator (AMR). This technology yields to highly efficient pump schemes and allows for the highest spectral quality on the market. The LCX-532L is insentive to temperature variations and to mechanical vibrations. LCX-532L is compatible in the L4Cc Combiner and L6Cc Combiner. It provides with : • Integrated control electronics • SM/PM/MM fiber coupling options • USB and RS232 interfaces • Dedicated control software • External controller with power display (Plug&Play versions, CDRH-compliant) Fiber coupling Fiber coupling options offer rugged and compact solutions to couple LaserBoxx into polarization maintaining fiber, standard single mode fiber or multimode fiber. Electro-Mechanical shutter The ACX-SHTE is a compact and affordable electro-mechanical shutter. It is mounted directly on the LCX or LPX in place of the standard manual shutter. The fiber coupling and other options are fully compatible with the electro mechnical shutter. The ACX-SHTE is actuated via the LCX or LPX embedded software or via a standard TTL signal. Pigtailed laser
